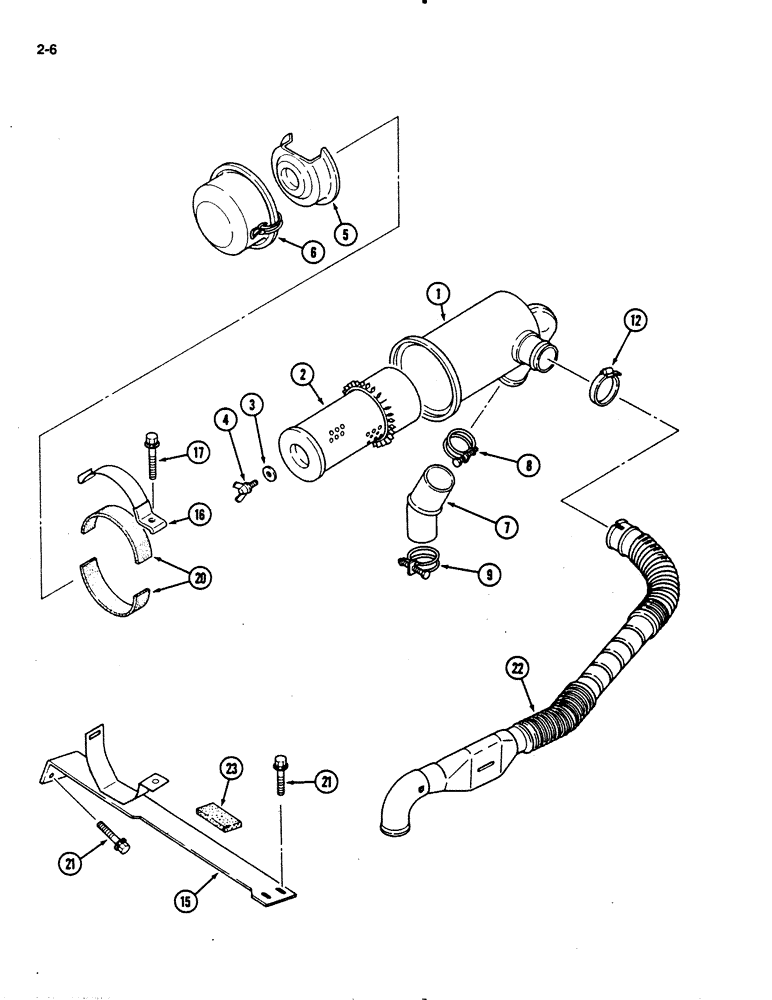

Запчасти Case IH 275 (2-06) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

1962471C1

CASE

BODY - air cleaner

1шт.

2

1273134C91

FILTER, ELEMENT

ELEMENT KIT - air cleaner, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - seal (Order 1273134C91)

1шт.

4

1269665C1

BOLT

BOLT - sing element attaching

1шт.

5

1269666C1

COVER ASSY

COVER - air cleaner

1шт.

6

1269667C1

COVER ASSY

COVER - air cleaner (Replaces 1962472C1)

1шт.

7

1962973C1

INTAKE AIR HOSE,7.90 mm ID x 185.00 mm

HOSE, - lower 7.90 mm ID x 185.00 mm

1шт.

8

27725R1

HOSE CLAMP,#36, 1.81/2.75 Type F Worm, W/liner

CLAMP - hose

1шт.

9

27725R1

HOSE CLAMP,#36, 1.81/2.75 Type F Worm, W/liner

CLAMP - hose

1шт.

12

27725R1

HOSE CLAMP,#36, 1.81/2.75 Type F Worm, W/liner

CLAMP - hose

1шт.

15

1961842C1

BRACKET

- air cleaner

1шт.

16

1961843C1

SUPPORT ASSY.

SUPPORT - air cleaner

1шт.

17

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

1шт.

20

1961835C1

CUSHION ASSY.

CUSHION - air cleaner

2шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

22

1961838C1

AIR HOSE,54.00 mm ID x 770.00 mm

54.00 mm ID x 770.00 mm

1шт.

23

NSS

NOT SOLD SEPARAT

CUSHION - air cleaner hose, 80 mm long (Order 73217C and, Serial Range: cut-length)

1шт.
