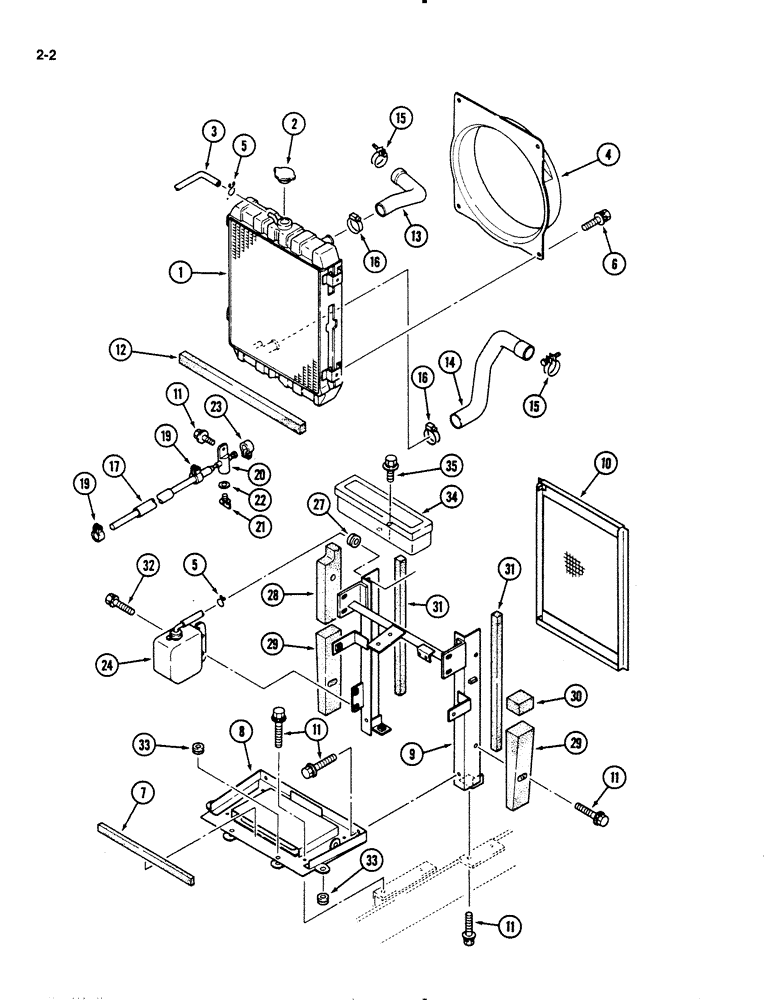

Запчасти Case IH 275 (2-02) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

1

1962485C1

RADIATOR

ASSEMBLY - engine

1шт.

2

1961825C1

RADIATOR CAP

CAP - radiator

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - overflow, 19-11/16 inch (500 mm) long (Order 87769C2 and, Serial Range: cut-length)

1шт.

4

1961826C1

SHROUD

- fan

1шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

6

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

7

1961823C1

CUSHION ASSY.

CUSHION - foam, battery base

1шт.

8

1961827C1

BASE

- battery

1шт.

9

1961828C1

BRACKET

- radiator

1шт.

10

1961829C1

COVER ASSY

SCREEN - radiator

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

12шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

12шт.

12

1961822C1

CUSHION ASSY.

CUSHION - radiator sealing, front lower

1шт.

13

1961830C1

RADIATOR HOSE,32.00 mm, 35.00 mm ID x 174.00 mm

Upper 32.00 mm, 35.00 mm ID x 174.00 mm

1шт.

14

1961831C1

RADIATOR HOSE,32.00 mm, 35.00 mm ID x 190.00 mm

Lower 32.00 mm, 35.00 mm ID x 190.00 mm

1шт.

15

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP - hose

2шт.

16

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - hose

2шт.

17

NSS

NOT SOLD SEPARAT

HOSE ASSEMBLY - radiator drain, 16-17/32 inch (420 mm) long (Order B90923 and, Serial Range: cut-length)

1шт.

19

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

2шт.

20

1269622C1

TEE

- radiator drain

1шт.

21

1275078C1

LOCK VALVE

VALVE - drain cock

1шт.

22

1275077C1

GASKET

- drain cock

1шт.

23

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

1шт.

24

1961821C1

TANK

ASSEMBLY - overflow

1шт.

27

1961840C1

GROMMET

- over flow hose

1шт.

28

1961815C1

CUSHION ASSY.

CUSHION - radiator sealing, upper left

1шт.

29

1961816C1

CUSHION ASSY.

CUSHION - radiator sealing, lower

2шт.

30

1961817C1

CUSHION ASSY.

CUSHION - radiator sealing, upper right

1шт.

31

1961818C1

CUSHION ASSY.

CUSHION - radiator sealing

2шт.

32

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

33

1961819C1

GROMMET

- rubber

4шт.

87769C2

HOSE

- rubber, 9/32 inch ID x 90 foot (7 mm x 27-1/2 m)

1шт.

34

1269728C1

BOX

- tool

1шт.

35

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

1963777C1

CUSHION ASSY.

PAD

1шт.
