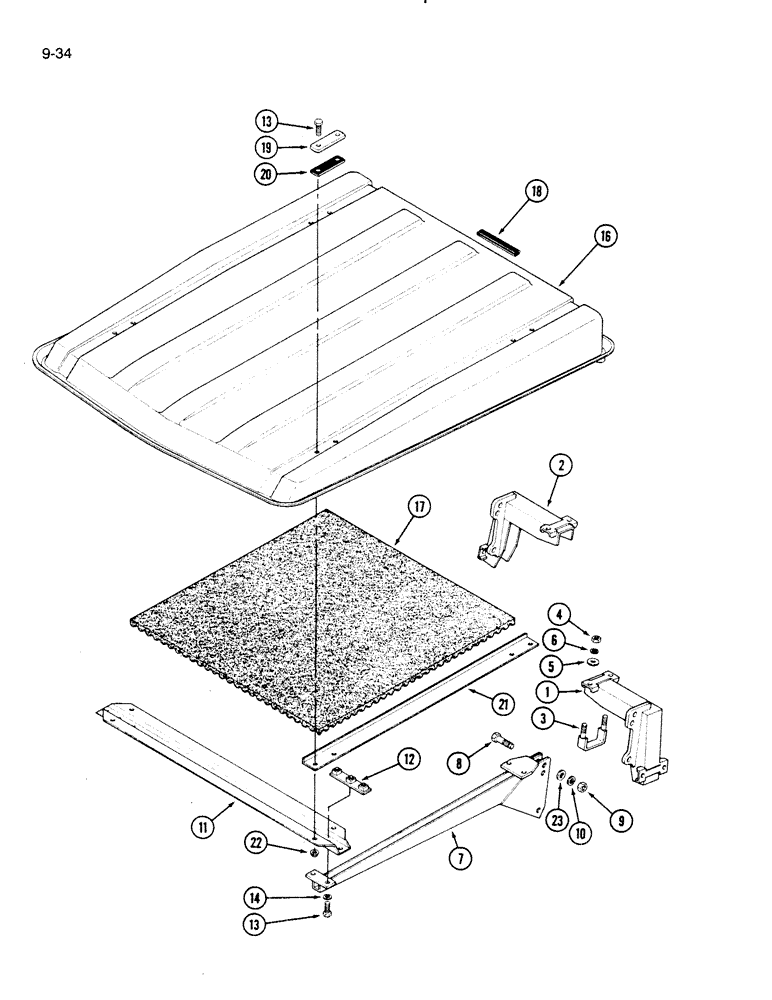

Запчасти Case IH 275 (9-34) - SUNSHADE (09) - CHASSIS/ATTACHMENTS

99050C91

SUNSHADE ASSEMBLY - tractor (Machinery item), Includes: Ref. 1 - 22

1шт.

1

1962715C1

SUPPORT ASSY.

SUPPORT - left

1шт.

2

1962714C1

SUPPORT ASSY.

SUPPORT - right

1шт.

3

1962713C1

BOLT (SPREADER),M12 x 1.25 x 75mm

U-BOLT - sunshade mounting

4шт.

4

525-5121

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25 mm

8шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

6

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

7

1962712C1

FUNNEL

FRAME - roof

2шт.

8

514-920

BOLT,Hex, M14 x 1.5 x 20mm, Cl 8.8, Full Thd

- hex, special

4шт.

9

525-5122

NUT,M14 x 1.5, Cl 8

- hex, M14 x 1.5 mm

4шт.

10

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

11

1962711C1

FUNNEL

FRAME - roof

2шт.

12

1962710C1

CLAMP

- frame

4шт.

13

514-719

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 40 mm long

12шт.

14

892-11010

LOCK WASHER,M10

20шт.

16

1962709C1

ROOF

- sunshade, Includes: Ref. 17 & 18

1шт.

17

1962717C1

SLEEVE

LINER - roof

1шт.

18

1962718C1

MOLDING

MOULDING - roof

1шт.

19

1962764C1

CLAMP

STRAP - mounting

4шт.

20

1962765C1

MISC PACKAGING

SEAL - strap

4шт.

21

1962766C1

PLATE ASSY.

FRAME - liner

2шт.

22

525-5120

NUT,M10, Cl 8

- hex flange

8шт.

23

895-11014

WASHER,M14 x 28 x 2.5

- flat, 15 x 28 x 3 mm

4шт.
