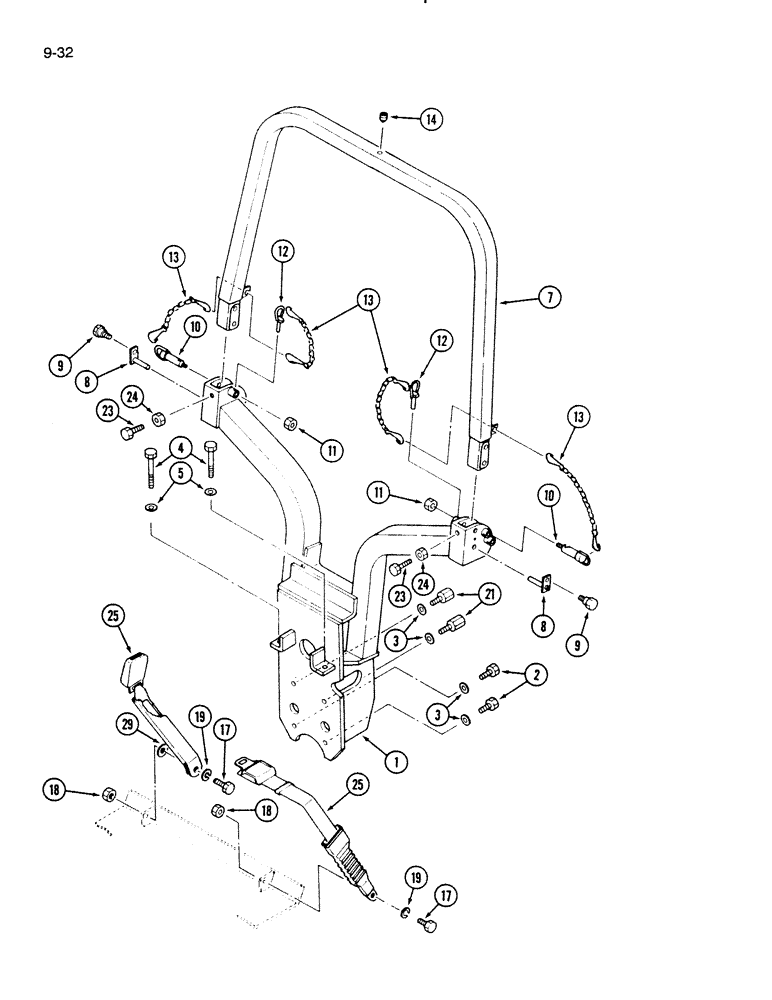

Запчасти Case IH 275 (9-32) - ROPS FRAME (09) - CHASSIS/ATTACHMENTS

1963139C1

ARCH

FRAME ASSEMBlY - frame, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

PILLAR ASSEMBLY - frame

1шт.

2

827-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

- hex, M14 x 35 mm, Grade 10.9

2шт.

3

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 13 x 24 x 3 mm

4шт.

4

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

7

NSS

NOT SOLD SEPARAT

BAR - roll

1шт.

8

99341C1

PIVOT PIN

PIN - hinge

2шт.

9

1962705C1

BOLT

- hex, 16 mm long

2шт.

10

99342C1

PIN

- threaded

2шт.

11

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25, Grade 8

2шт.

12

99343C1

PIN

- klik

2шт.

13

99346C1

CHAIN (AG)

CHAIN - link

4шт.

14

1962694C1

PLUG

- roll bar

1шт.

17

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

2шт.

18

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

21

1963127C1

BOLT (SPREADER),M14 x 2 x 35mm, Class 10.9

BOLT - special

2шт.

23

1963125C1

BOLT (SPREADER),M16 - 1.5 x 49mm

BOLT - special, ROPS locking

2шт.

24

1269797C1

TUBE NUT

NUT - hex, jam, M16

2шт.

25

1963128C1

SAFETY BELT

SAFETY BELT, Includes Ref. 17 - 19 and 29

1шт.

29

195-529

WASHER,7/16", SAE

- flat, 12 x 23 x 2 mm

1шт.
