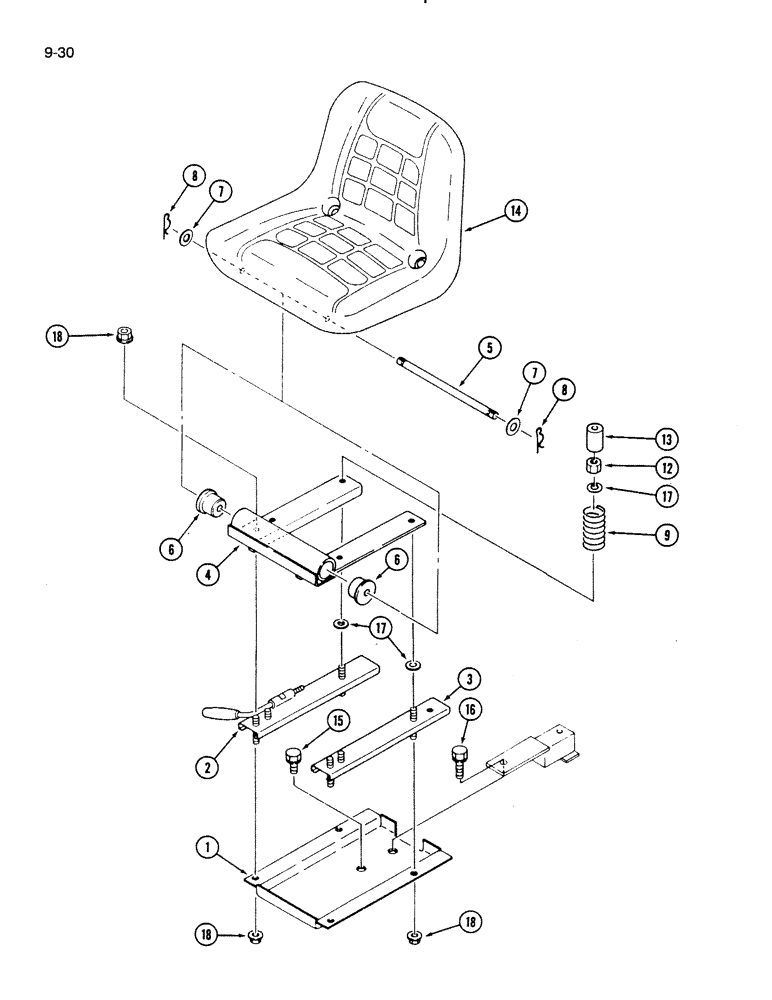

Запчасти Case IH 275 (9-30) - SEAT (09) - CHASSIS/ATTACHMENTS

1

1961915C1

SUPPORT ASSY.

SUPPORT - seat

1шт.

2

1962768C1

ADJUSTER

- seat (Replaces 1961916C1)

1шт.

3

99188C1

RAIL

- slide

1шт.

4

99186C1

BRACKET

- hinge

1шт.

5

1962587C1

SHAFT HOUSING

SHAFT- pivot

1шт.

6

99192C1

STOP

CUSHION - rubber

2шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

8

1282706C1

AXLE PIN

PIN - hair

2шт.

9

1962767C1

VALVE SPRING

SPRING - seat rail

2шт.

12

825-1108

NUT,Hex, M8, Cl 8

2шт.

13

99189C1

SEAT

STOPPER - rubber

2шт.

14

1961917C1

SEAT

ASSEMBLY - operator

1шт.

15

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

16

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

18

31082R1

NUT,M8 x 1.25, Flg, Cl 8

- hex flange, M8

8шт.
