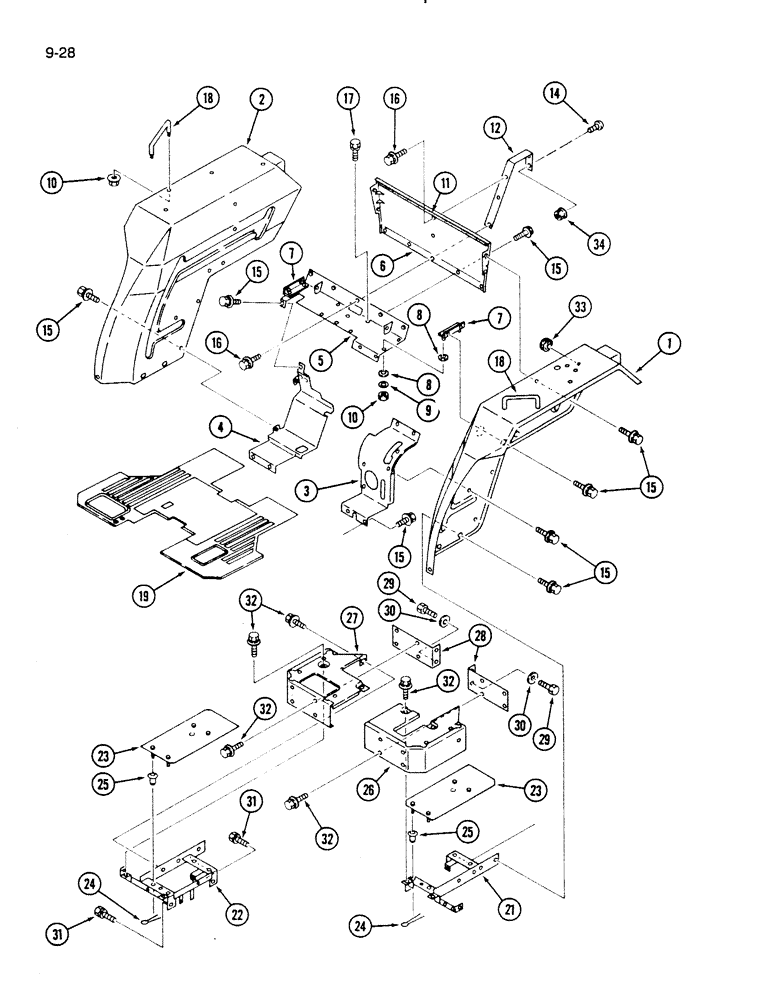

Запчасти Case IH 275 (9-28) - FENDERS, STEPS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1961905C1

FENDER

- rear, left

1шт.

2

1961906C1

FENDER

- rear, right

1шт.

3

1961907C1

COVER ASSY

COVER - side, left

1шт.

4

1961904C1

COVER ASSY

COVER - side, right

1шт.

5

1961902C1

COVER ASSY

COVER - center

1шт.

6

1961908C1

COVER ASSY

COVER - center, rear

1шт.

7

1961898C1

BRACKET

- mounting

2шт.

8

1961899C1

RUBBER WASHER

- rubber

8шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

10

31082R1

NUT,M8 x 1.25, Flg, Cl 8

- flange, M8, Grade 8

8шт.

11

1961900C1

BAND

SEAL - edge, rubber

1шт.

12

1961909C1

SUPPORT ASSY.

SUPPORT - SMV bracket

1шт.

14

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

15

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

28шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

28шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

28шт.

16

815-8020

BOLT - hex, M8 x 20 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

3шт.

17

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

4шт.

18

1269683C1

HANDLE

HANDRAIL - operator

2шт.

19

1961903C1

MAT

- floor

1шт.

21

1961910C1

BRACKET

- step, left

1шт.

22

1961911C1

BRACKET

- step, right

1шт.

23

1961912C1

PLATE ASSY.

PLATE - step

2шт.

24

1269734C1

AXLE PIN

PIN - hair

8шт.

25

1961896C1

CUSHION ASSY.

CUSHION - rubber

8шт.

26

1961913C1

STEP

- front, left

1шт.

27

1961914C1

STEP

- front, right

1шт.

28

1961895C1

BRACKET

- cover

2шт.

29

614-14020

BOLT,Hex, M14 x 2 x 20mm, Cl 8.8, Full Thd

- hex, M14 x 20 mm

4шт.

30

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

31

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

WASHER - lock, 14 mm

4шт.

32

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

16шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

16шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

16шт.

33

1963549C1

GROMMET

- fender

1шт.

34

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

2шт.

892-11010

LOCK WASHER,M10

2шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.
