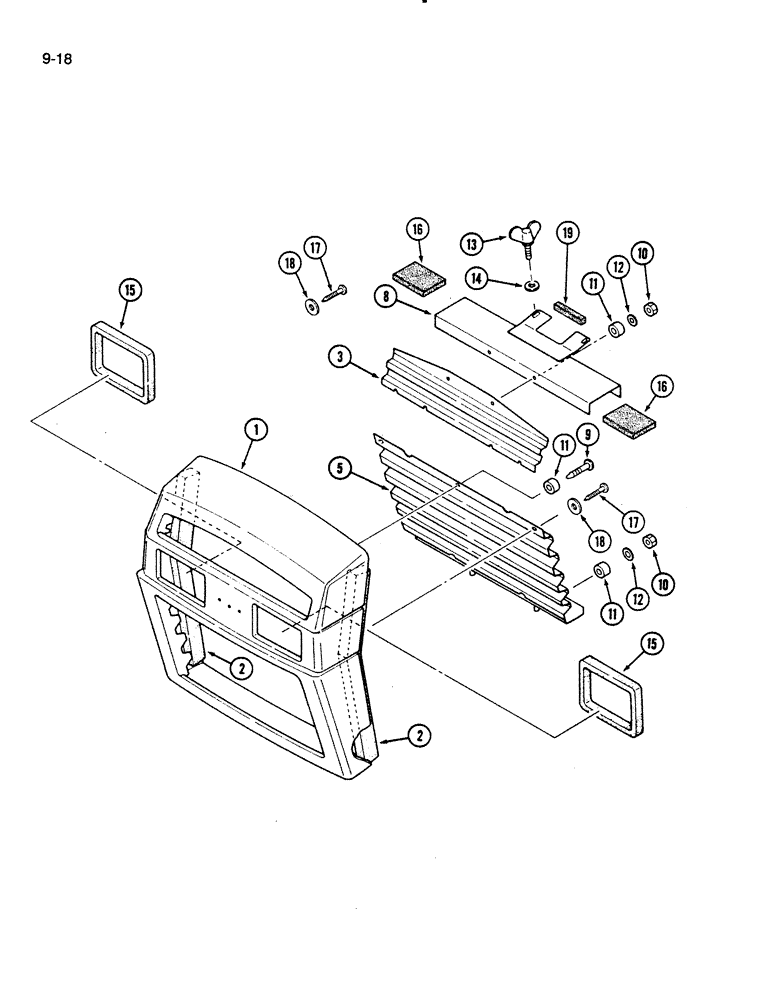

Запчасти Case IH 275 (9-18) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

1961891C1

HOUSING

GRILLE - tractor

1шт.

2

1961888C1

CUSHION ASSY.

CUSHION - side

2шт.

3

1961889C1

SCREEN

- grille, upper

1шт.

5

1961890C1

SCREEN

- grille, lower

1шт.

8

1961894C1

BRACKET

- grille, upper

1шт.

9

1273616C1

SELF-TAP SCREW,Phil, M5 x 16mm

SCREW - tapping, M5

1шт.

10

825-1106

NUT,Hex, M6, Cl 8

- hex, M6

6шт.

11

1961885C1

WASHER

SPACER - flat, 7 x 13 x 7 mm

7шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

13

1963274C1

THUMB SCREW

BOLT - wing (Replaces 3139081R1)

2шт.

15

99164C1

CUSHION ASSY.

CUSHION - head lamp

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL - grille bracket, 60 mm long (Order 73228C2 and, Serial Range: cut-length)

2шт.

17

1962722C1

SELF-TAP SCREW

BOLT - grill housing retaining

2шт.

18

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

19

1963777C1

CUSHION ASSY.

BLOCK - rubber

1шт.
