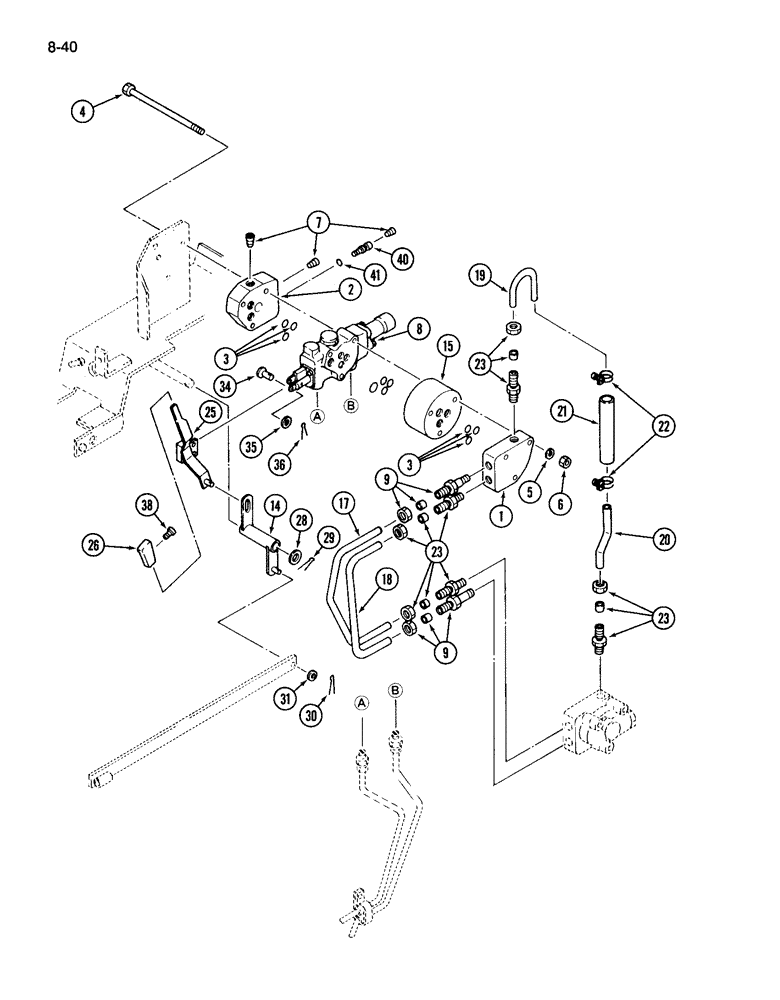

Запчасти Case IH 265 (8-40) - MID HYDRAULIC LIFT CONTROLS (08) - HYDRAULICS

1

1963209C1

ADAPTER

- control valve

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - control valve (Order 1963220C1)

1шт.

3

1282749C1

O-RING

O-RING - 12 mm ID

6шт.

4

514-618

BOLT,Hex, M8 x 1.25 x 175mm, Cl 8.8

- hex, M8 x 175 mm

3шт.

5

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

6

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

3шт.

7

1282720C1

PLUG

- control valve cover

3шт.

8

REF

INSTRUCTION

VALVE - control (see figure 8-44)

1шт.

9

1963211C1

JOINT

CONNECTOR - tube

2шт.

14

1963212C1

LEVER

- control

1шт.

15

1963213C1

SPACER

- control valve

1шт.

17

1963214C1

PIPE,10 mm ID, 12 mm OD, 217.5, 148 mm Length

TUBE - adapter

1шт.

18

1963215C1

PIPE

TUBE - adapter

1шт.

19

1963216C1

TUBE

- adapter return

1шт.

20

1963217C1

PIPE,9.6 mm ID, 12 mm OD, 135, 20 mm Length

TUBE - return, lower

1шт.

21

1963218C1

HOSE

- return

1шт.

22

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

2шт.

23

1275158C1

COUPLING

CONNECTOR - tube

4шт.

NSS

NOT SOLD SEPARAT

BODY - tube joint

1шт.

25

1963219C1

LEVER

- position

1шт.

26

1963117C1

KNOB

- position lever

1шт.

28

1963230C1

SLEEVE CYLINDER

SPACER - control lever

1шт.

29

934532R1

COTTER PIN,M4 x 32

PIN - cotter, 4 x 32 mm

1шт.

30

30450R1

COTTER PIN,M2.5 x 16

PIN - cotter, 2.5 x 16 mm

1шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

34

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

3шт.

35

30481R1

WASHER,M5 x 10 x 1

- flat, 6 x 10 x 1 mm

3шт.

36

30242R1

COTTER PIN,M1.2 x 10

PIN - cotter

3шт.

38

31326R1

SET SCREW,Hex Soc, M5 x 12, Cup Pt

SCREW - set, hex socket, 12 mm long

1шт.

1963220C1

COVER ASSY

COVER ASSEMBLY - control valve (Includes Ref. 2, 7, 40 and 41), Includes: Ref. 40 and 41

1шт.

40

NSS

NOT SOLD SEPARAT

SHAFT - control cover

1шт.

41

1273521C1

O-RING

O-RING - control cover shaft

1шт.
