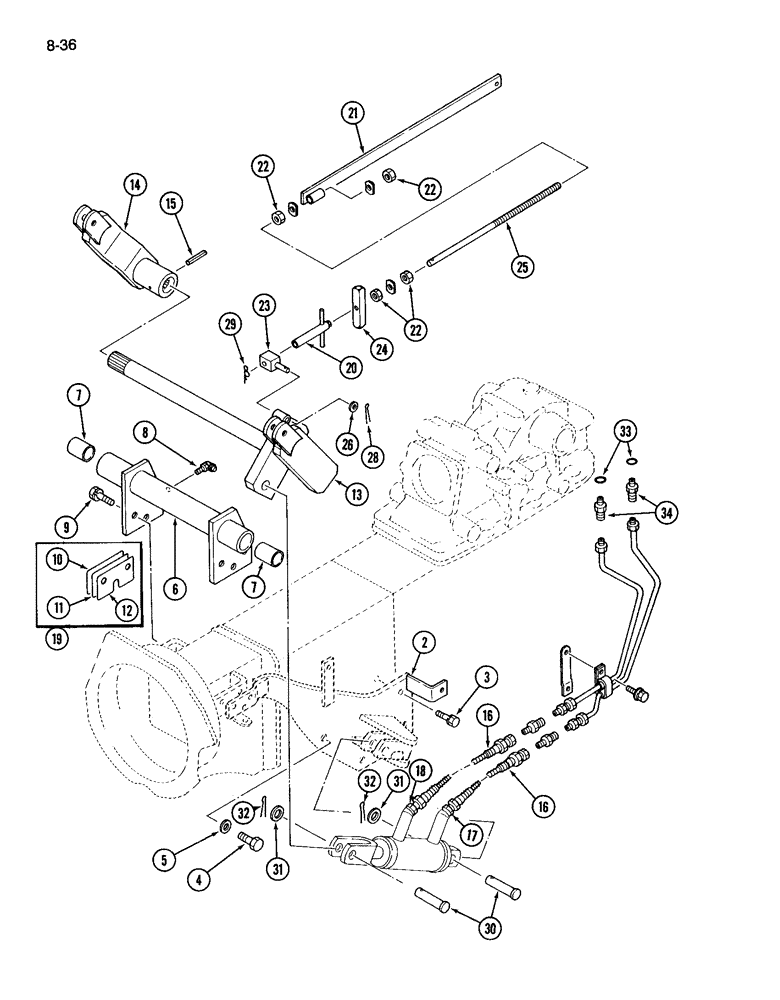

Запчасти Case IH 265 (8-36) - MID HYDRAULIC LIFT (08) - HYDRAULICS

2

1963188C1

BRACKET

- anchor

1шт.

3

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

2шт.

933965R1

LOCK WASHER,M10

2шт.

4

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

5

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

6

1963189C1

SUPPORT

- shaft

1шт.

7

1963190C1

BUSHING

- lift shaft

2шт.

8

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, short, 65 degree, 1/8 PTF

1шт.

9

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 30 mm

6шт.

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

6шт.

10

NSS

NOT SOLD SEPARAT

SHIM - adjusting, support shaft (Order 1963191C1)

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - adjusting, support shaft (Order 1963191C1)

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - adjusting, support shaft (Order 1963191C1)

1шт.

13

1963192C1

ARM

- lift, left

1шт.

14

1963193C1

ARM

- lift, right

1шт.

15

30394R1

LOCK PIN,M6 x 50, Slotted

PIN - spring

1шт.

16

1963194C1

HOSE

ASSEMBLY - lift cylinder

2шт.

17

1963195C1

ADAPTER

- hose, to lift cylinder

1шт.

18

1963196C1

ADAPTER

- hose, to lift cylinder

1шт.

19

1963191C1

SHIM KIT

SHIM SET - adjusting, support shaft

1шт.

20

1963197C1

STOP

- lift arm

1шт.

21

1963198C1

ROD

- link, control lever

1шт.

22

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

4шт.

23

1963199C1

PIN

- lift arm

1шт.

24

1963200C1

LEVER

- lift arm stop

1шт.

25

1963201C1

ROD

- link, control lever

1шт.

26

1963229C1

SLEEVE CYLINDER

SHIM - pin, lift arm

1шт.

28

934792R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 25 mm

1шт.

29

1269735C1

AXLE PIN

PIN - hair

1шт.

30

1963202C1

PIN ASSY.

PIN - clevis

2шт.

31

895-11020

WASHER,M20 x 37 x 3

- flat, 21 x 37 x 3 mm

2шт.

32

132-341

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

2шт.

33

1273524C1

O-RING

O-RING - control valve

2шт.

34

1963203C1

BODY

ELBOW - 90 degree

2шт.
