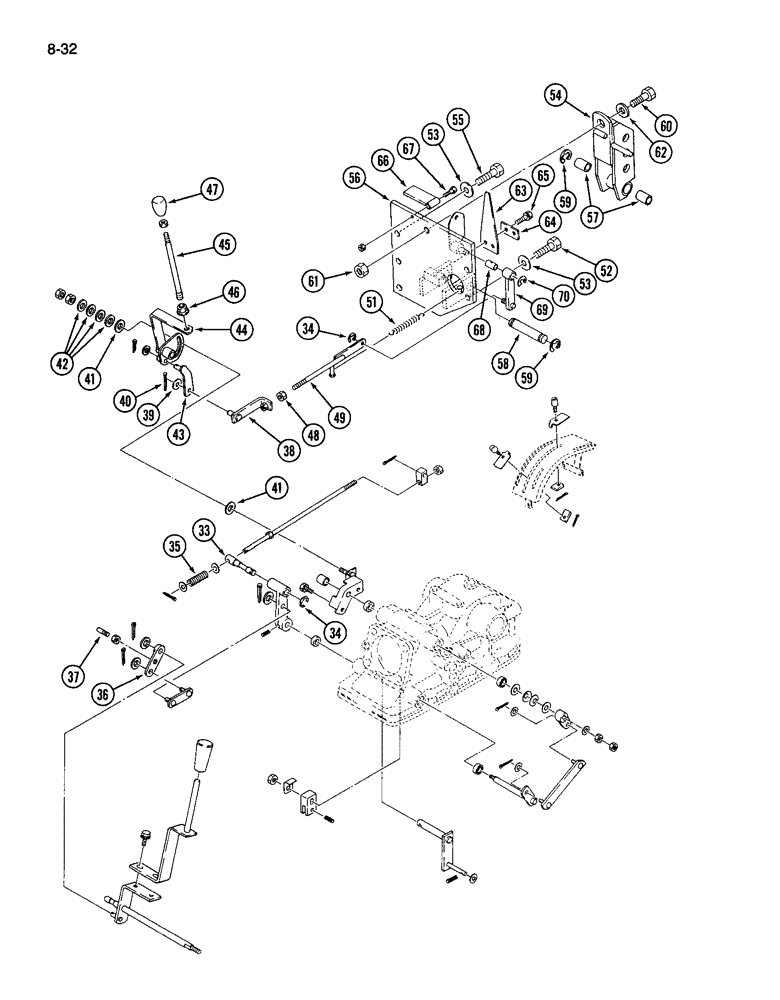

Запчасти Case IH 265 (8-32) - HITCH SYSTEM, POSITION AND LOAD CONTROL LINKAGE (08) - HYDRAULICS

33

1273374C1

AXLE PIN

PIN - pivot

1шт.

34

1271817C1

CIRCLIP,M9

RING - retaining, E type

2шт.

35

1273375C1

VALVE SPRING

SPRING - linkage

1шт.

36

1265197C1

ARM

LINK - load control

1шт.

37

1265198C1

STUD

- M8 x 38 mm

1шт.

38

1963322C1

JOINT

LINK - load control rod

11шт.

39

25709R1

WASHER

- flat, 11 x 21 x 2 mm

1шт.

40

934792R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3 x 20 mm

1шт.

41

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

2шт.

42

1265201C1

BELLEVILLE WASHER

- spring

4шт.

43

1265199C1

ARM

LINK - load control

1шт.

44

1963458C1

BRACKET

- lever, load control

1шт.

45

1963323C1

LEVER

- load control

1шт.

46

525-5100

NUT,M10 x 1.25, Cl 8

- hex M10

1шт.

934494R1

WASHER,Ext Tooth, M10

- lock, external tooth, 10 mm

1шт.

47

1963346C1

KNOB

- control lever

1шт.

48

525-5100

NUT,M10 x 1.25, Cl 8

- hex M10

1шт.

49

1963453C1

ROD

- linkage

1шт.

51

1269552C1

VALVE SPRING

SPRING - linkage rod

1шт.

52

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

3шт.

53

30408R1

WASHER,M12 x 28.5 x 3, HT

- flat, 15 x 28 x 3 mm

5шт.

54

1963452C1

BRACKET

- upper link

1шт.

55

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

2шт.

56

1963454C1

BRACKET

- upper inner link

1шт.

57

1265207C1

SPACER

BUSHING - upper link bracket

2шт.

58

1265208C1

AXLE PIN

PIN - bracket

1шт.

59

1265212C1

CIRCLIP,M16

RING - retaining, E type

2шт.

60

514-1017

BOLT,Hex, M16 x 1.5 x 70mm, Cl 8.8

1шт.

61

525-5109

NUT,M16 x 1.5, Cl 8

- hex, M16

1шт.

62

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

- flat, 17 x 30 x 3 mm

1шт.

63

1963326C1

SPRING

- top link, plate

1шт.

64

1962427C1

PLATE ASSY.

PLATE - retainer

1шт.

65

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

933965R1

LOCK WASHER,M10

2шт.

66

1963319C1

STOP

- load control

1шт.

67

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

68

1963327C1

BUSHING

- load link

1шт.

69

1963318C1

LINK

- load control

1шт.

70

1273592C1

CIRCLIP,M11

RING - retaining

1шт.
