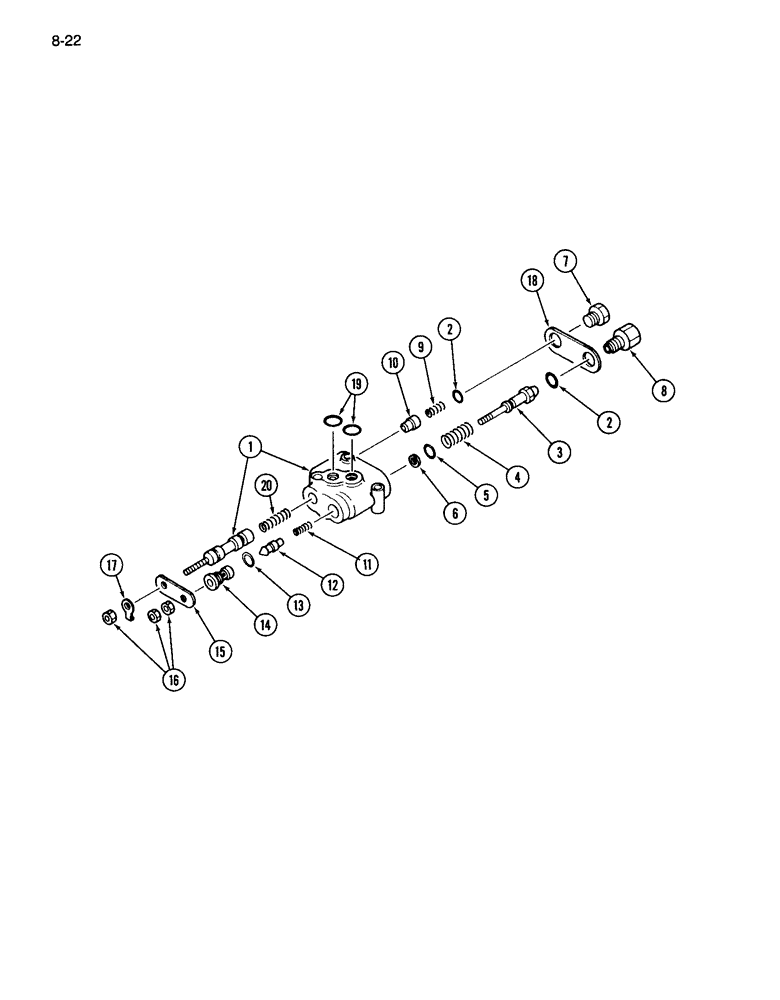

Запчасти Case IH 265 (8-22) - HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

1273440C91

LOCK VALVE

VALVE ASSEMBLY - controll, hydraulic, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - control valve (Order 1273440C91)

1шт.

2

1282754C1

O-RING

O-RING - 15mm ID

2шт.

3

1282755C1

LOCK VALVE

VALVE - poppet

1шт.

4

1282756C1

VALVE SPRING

SPRING - valve poppet

1шт.

5

1273520C1

O-RING

O-RING - 7 mm ID

1шт.

6

1282608C1

RING

- unloader valve

1шт.

7

1282757C1

PLUG

- unloader valve

1шт.

8

1282758C1

PLUG

- seat

1шт.

9

1282759C1

VALVE SPRING

SPRING - valve

1шт.

10

1282760C1

LOCK VALVE

VALVE - unloader

1шт.

11

1282761C1

VALVE SPRING

SPRING - check valve

1шт.

12

1282762C1

LOCK VALVE

VALVE - check

1шт.

13

1282763C1

O-RING

O-RING - 9 mm ID

1шт.

14

1282764C1

STOP

SEAT - check valve

1шт.

15

1282765C1

PLATE ASSY.

PLATE - valve

1шт.

16

1282766C1

NUT

- hex, jam

3шт.

17

1282767C1

LOCK WASHER

- lock, tab

1шт.

18

1282768C1

PLATE ASSY.

PLATE - end, valve

1шт.

19

1273523C1

O-RING

O-RING - 12 mm ID

2шт.

20

1282769C1

VALVE SPRING

SPRING - return

1шт.
