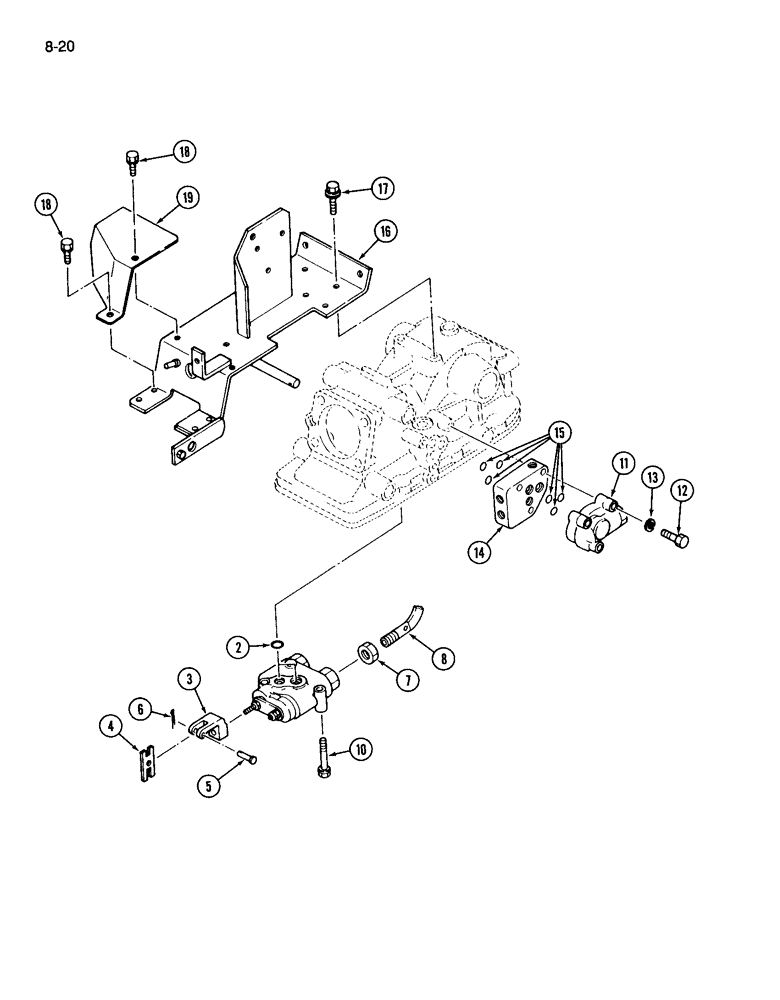

Запчасти Case IH 265 (8-20) - HYDRAULIC CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, Includes: Ref. 1 - 10

1шт.

2

1273523C1

O-RING

O-RING - 12 mm ID

2шт.

3

1273441C1

SUPPORT ASSY.

YOKE - valve linkage

1шт.

4

1282978C1

BAR

PLATE - valve linkage

1шт.

5

1273247C1

AXLE PIN

PIN- clevis

1шт.

6

932951R1

COTTER PIN,M1.6 x 12

PIN - cotter, 2 x 12 mm

1шт.

7

1269796C1

TUBE NUT

NUT - jam

1шт.

8

1273443C1

ROD

- valve

1шт.

10

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, M8 x 45 mm

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

11

REF

INSTRUCTION

COVER ASSEMBLY - (See Fig. 8-24)

1шт.

12

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

- hex, M8 x 90 mm

3шт.

13

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

14

1963457C1

ADAPTER

- hydraulic valve

1шт.

New Flow Valve 1346801C1

1шт.

15

1273523C1

O-RING

O-RING - 12 mm ID

6шт.

16

1963456C1

COVER

- hydraulic housing

1шт.

New Cover 1346806C1

1шт.

17

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 25 mm

2шт.

933965R1

LOCK WASHER,M10

2шт.

25709R1

WASHER

- flat, 11 x 21 x 2

2шт.

18

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

933965R1

LOCK WASHER,M10

3шт.

19

1963444C1

COVER

S - hydraulic housing

1шт.
