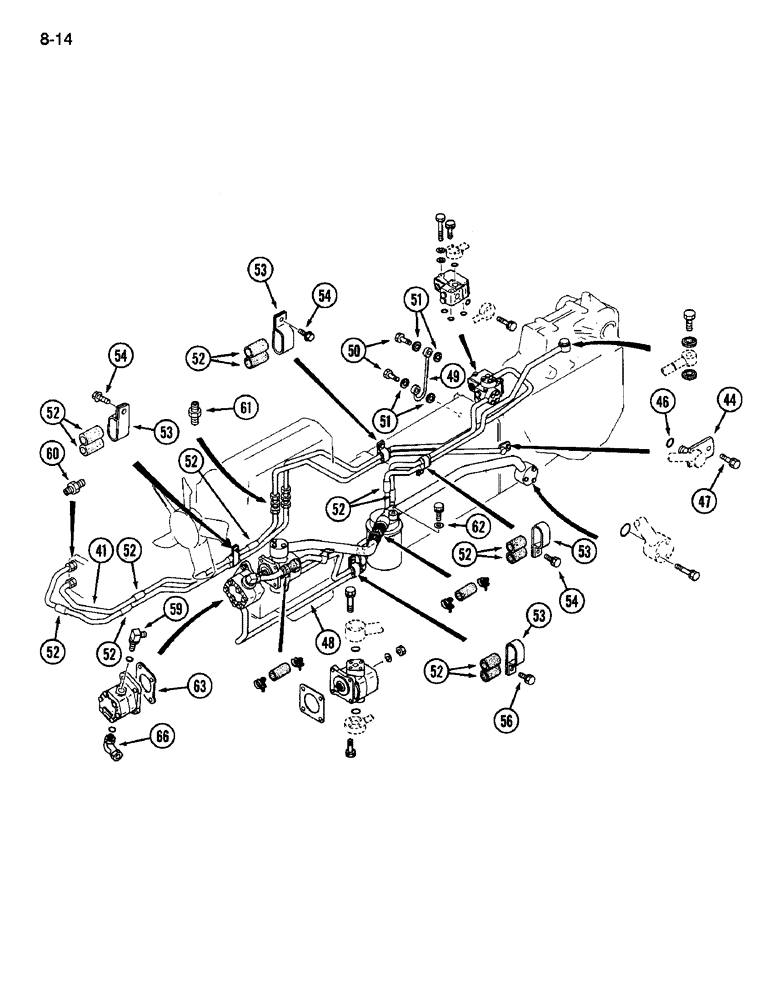

Запчасти Case IH 265 (8-14) - HYDRAULIC PUMP AND LINES, SYNCHROMESH TRANSMISSION, POWER STEERING (08) - HYDRAULICS

41

1963468C1

TUBE

- return

1шт.

44

1963466C1

PIPE ASSY.

TUBE - return

1шт.

46

1273520C1

O-RING

O-RING - 7 mm ID

1шт.

47

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

48

1963464C1

PIPE

TUBE - pressure

1шт.

49

1282723C1

TUBE,8 mm OD, 122, 20 mm Length

ASSEMBLY - hydraulic

1шт.

50

1282725C1

BOLT,Hex, M10 x 1.25 x 20mm, Drilled

BOLT - special

2шт.

51

1282724C1

GASKET

- tube

4шт.

52

1282727C1

TUBE

CUSHION - clamp

17шт.

53

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- hose

4шт.

54

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

3шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

3шт.

56

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

933965R1

LOCK WASHER,M10

1шт.

59

1963344C1

ELBOW

- 90 degree

1шт.

60

1275158C1

COUPLING

CONNECTOR ASSMEBLY - 12 mm tube x 3/8 inch PT

2шт.

61

1273774C1

UNION

CONNECTOR ASSEMBLY - tube (Remove and discard hex nuts and sleeves at assembly)

2шт.

62

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

63

1962335C1

GASKET

COLLAR - rubber

1шт.

66

1962334C1

JOINT TURNING

ELBOW - 90 degree

1шт.
