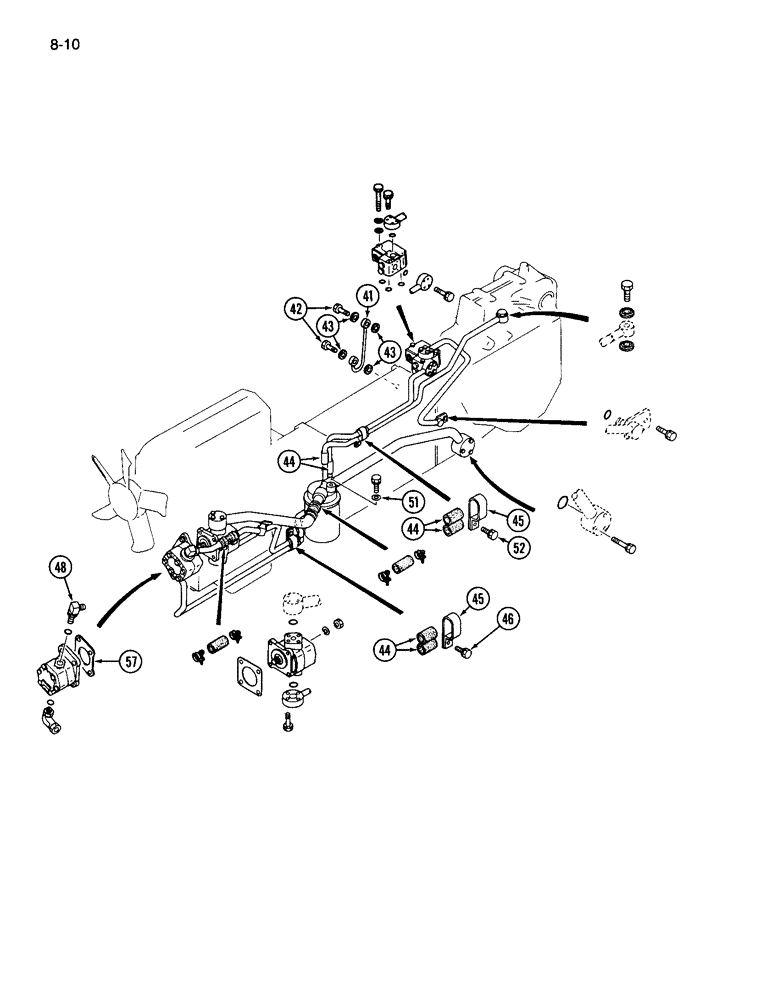

Запчасти Case IH 265 (8-10) - HYDRAULIC PUMP AND LINES, SYNCHROMESH TRANSMISSION, MANUAL STEERING (08) - HYDRAULICS

41

1282723C1

TUBE,8 mm OD, 122, 20 mm Length

ASSEMBLY - hydraulic

1шт.

42

1282725C1

BOLT,Hex, M10 x 1.25 x 20mm, Drilled

BOLT - special

2шт.

43

1282724C1

GASKET

- tube

4шт.

44

1282727C1

TUBE

CUSHION - clamp

8шт.

45

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- hose

2шт.

46

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

933965R1

LOCK WASHER,M10

1шт.

48

1963344C1

ELBOW

- 90 degree

1шт.

51

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

52

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

1шт.

57

1962335C1

GASKET

- auxiliary pump

1шт.
