(8-06) - HYDRAULIC PUMP AND LINES, CONSTANT MESH MECHANICAL TRANSMISSION, POWER STEERING

Запчасти Case IH 265 (8-06) - HYDRAULIC PUMP AND LINES, CONSTANT MESH MECHANICAL TRANSMISSION, POWER STEERING (08) - HYDRAULICS

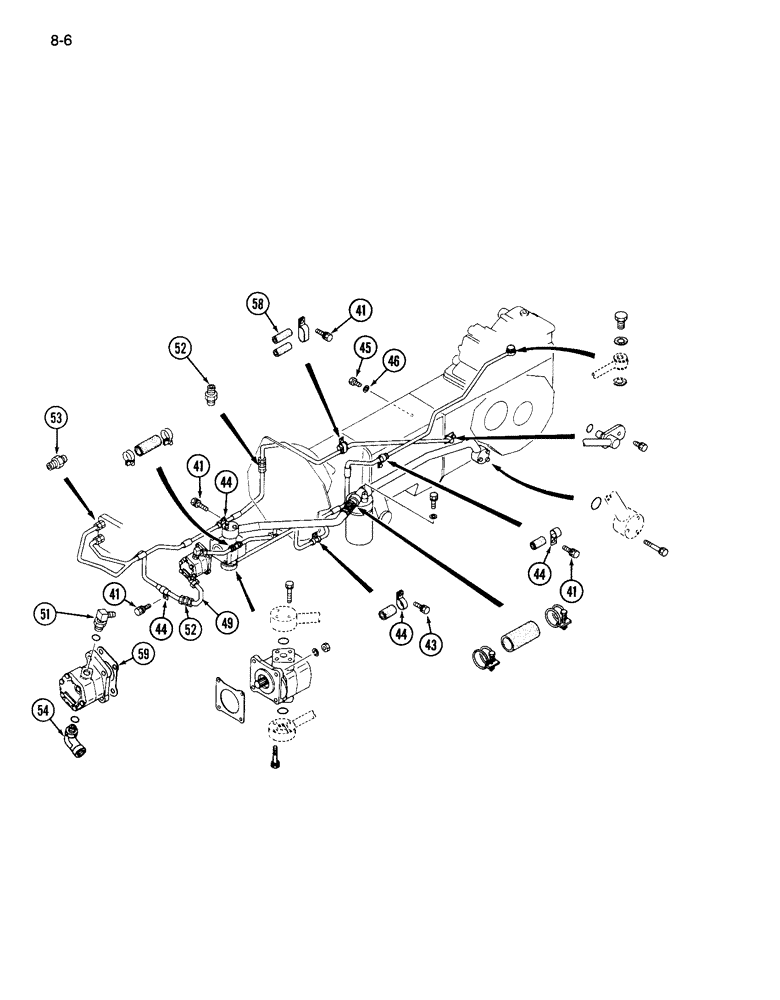

Схема запчастей Case IH 265 - (8-06) - HYDRAULIC PUMP AND LINES, CONSTANT MESH MECHANICAL TRANSMISSION, POWER STEERING (08) - HYDRAULICS
59
44
43
41
52
45
44
44
44
49
51
52
41
46
58
53
41
41
54
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

41

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

4шт.

43

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

933965R1

LOCK WASHER,M10

1шт.

44

NLS

NO LONGER SERVICED

- tube

4шт.

45

514-700

BOLT,Hex, M10 x 1 x 16mm, Cl 8.8, Full Thd

- hex, M10 x 15 mm

1шт.

46

1282724C1

GASKET

- plug

1шт.

49

1963329C1

PIPE,9.6 mm ID, 12 mm OD, 144, 80, 34 mm Length

TUBE - pressure

1шт.

51

1963344C1

ELBOW

- 90 degree

1шт.

52

1273774C1

UNION

CONNECTOR ASSEMBLY - tube

2шт.

53

1275158C1

COUPLING

CONNECTOR ASSEMBLY - 12 mm tube x 3/8 PT (Remove and discard nuts and sleeves at assembly)

2шт.

54

1962334C1

JOINT TURNING

ELBOW - 90 degree

1шт.

58

1963345C1

COLLAR

- rubber

1шт.

59

1962335C1

GASKET

- auxiliary pump

1шт.
