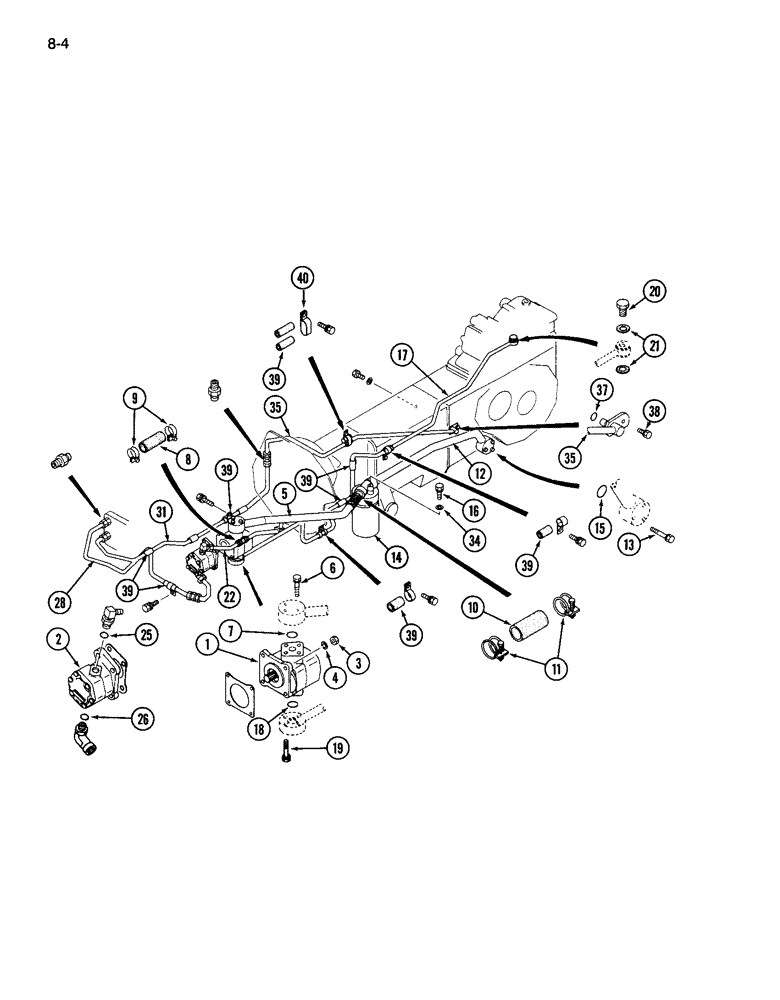

Запчасти Case IH 265 (8-04) - HYDRAULIC PUMP AND LINES, CONSTANT MESH MECHANICAL TRANSMISSION, POWER STEERING (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, main (See Fig 8-16)

1шт.

Gasket # 1991011c1

1шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, auxiliary (See Fig 8-18)

1шт.

3

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

4шт.

4

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

5

1963460C1

PIPE

TUBE - filter

1шт.

6

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

3шт.

933833R1

LOCK WASHER,M6

3шт.

7

1269872C1

O-RING

- 20 mm ID

1шт.

8

1962340C1

HYDRAULIC HOSE

HOSE - rubber, 70 mm long

1шт.

9

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP - hose

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - rubber, 2-3/4 inch (90 mm) long (Order 637728C1 and, Serial Range: cut-length

1шт.

11

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose

2шт.

12

1963461C1

PIPE

TUBE - filter

1шт.

13

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

14

1963357C1

FILTER, ENGINE OIL

FILTER - hydraulic pump

1шт.

15

1269877C1

O-RING

- 28 mm ID

1шт.

16

514-702

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

S - hex, M10 x 35 mm

1шт.

933965R1

LOCK WASHER,M10

1шт.

17

1963462C1

TUBE,10 mm ID, 12 mm OD, 1305, 287 mm Length

- pressure

1шт.

18

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

19

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

3шт.

933833R1

LOCK WASHER,M6

3шт.

20

1282526C1

BOLT,M16 x 1.5 x 30mm

BOLT - special

1шт.

21

1963085C1

SEALING WASHER

SEAL - washer

2шт.

22

1963328C1

PIPE,12.7 mm ID, 15.9 mm OD, 99 mm Length

TUBE - by pass

1шт.

25

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

26

1273793C1

O-RING

O-RING - 14 mm ID

1шт.

28

1963469C1

PIPE ASSY.

TUBE - pressure

1шт.

31

1963468C1

TUBE

- return

1шт.

34

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

35

1963466C1

PIPE ASSY.

TUBE - return

1шт.

37

1273520C1

O-RING

O-RING - 7 mm ID

1шт.

38

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

39

1282727C1

TUBE

CUSHION - tube

10шт.

40

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- hose

1шт.
