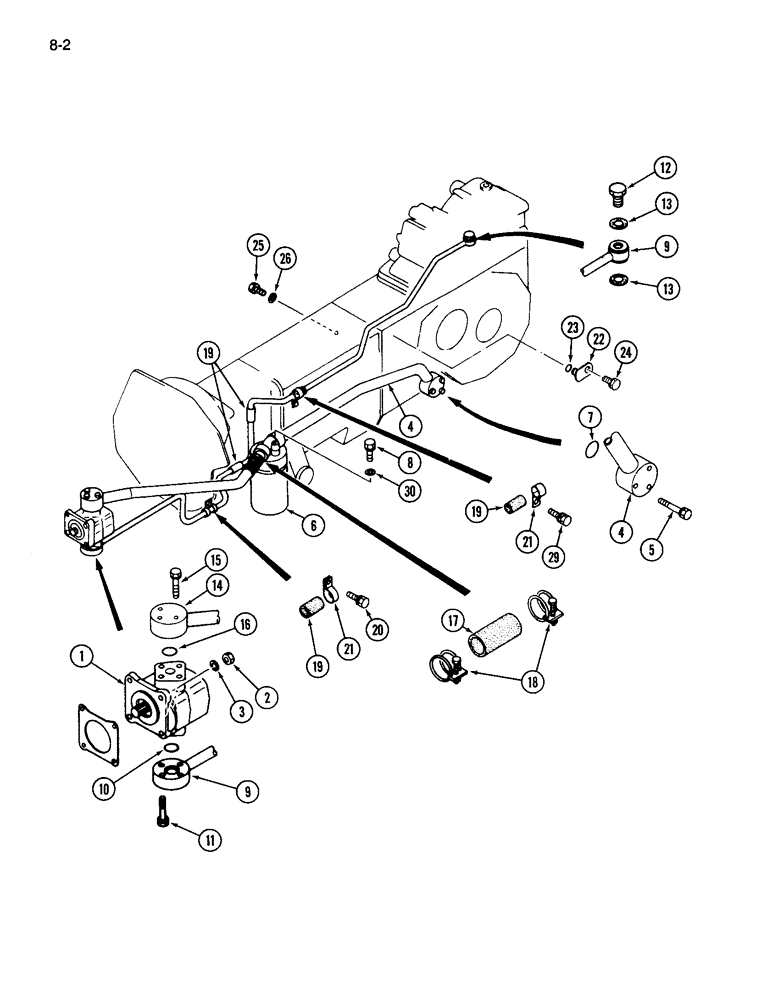

Запчасти Case IH 265 (8-02) - PUMP AND HYDRAULIC LINES, CONSTANT MESH MECHANICAL TRANSMISSION, MANUAL STEERING (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, main (see figure 8-16)

1шт.

2

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

4шт.

3

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

4

1963461C1

PIPE

TUBE - filter

1шт.

5

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

6

1963357C1

FILTER, ENGINE OIL

FILTER - hydraulic pump

1шт.

7

1269877C1

O-RING

- 28 mm ID

1шт.

8

514-702

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

- hex, M10 x 35 mm

1шт.

933965R1

LOCK WASHER,M10

1шт.

9

1963462C1

TUBE,10 mm ID, 12 mm OD, 1305, 287 mm Length

- pressure

1шт.

10

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

11

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

3шт.

933833R1

LOCK WASHER,M6

3шт.

12

1282526C1

BOLT,M16 x 1.5 x 30mm

BOLT - special

1шт.

13

1963085C1

SEALING WASHER

SEAL - washer

2шт.

14

1963465C1

PIPE

TUBE - suction

1шт.

15

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

3шт.

933833R1

LOCK WASHER,M6

3шт.

16

1269872C1

O-RING

- 20 mm ID

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - rubber, 2-3/4 inch (90 mm) long (Order 637728C1 and, Serial Range: cut-length)

1шт.

18

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose

2шт.

19

1282727C1

TUBE

CUSHION - tube

4шт.

20

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

933965R1

LOCK WASHER,M10

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

tube

2шт.

22

99253C1

PLUG

- housing

1шт.

23

1273520C1

O-RING

O-RING - 7 mm ID

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

25

514-700

BOLT,Hex, M10 x 1 x 16mm, Cl 8.8, Full Thd

- hex, M10 x 15 mm

1шт.

26

1282724C1

GASKET

- plug

1шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

1шт.

30

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.
