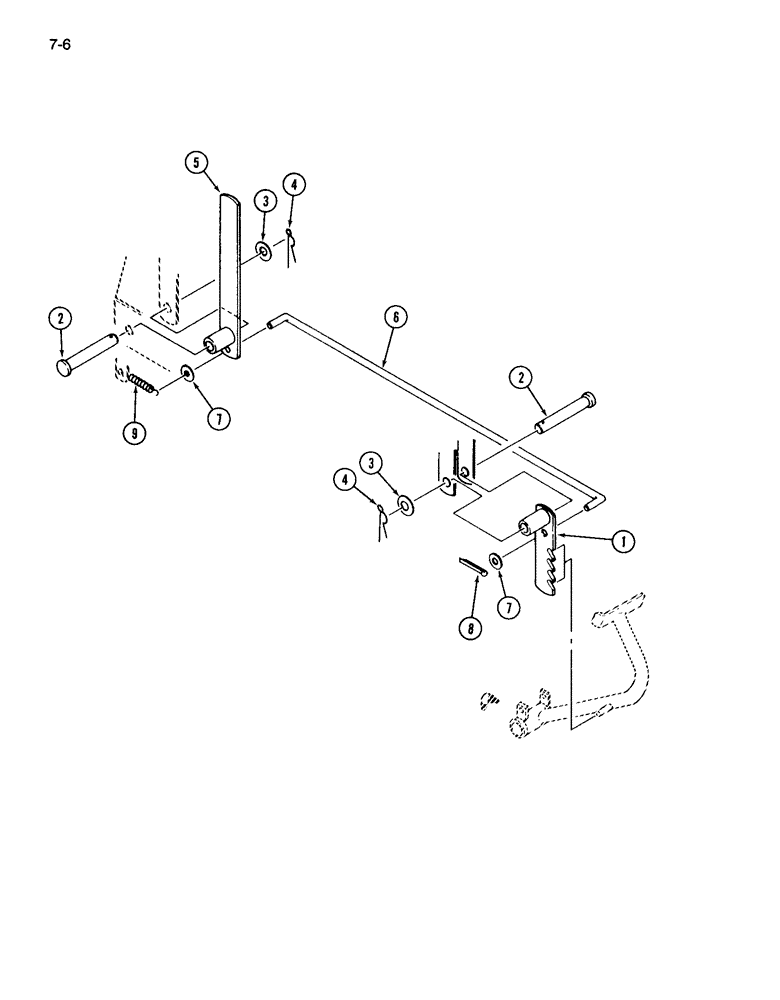

Запчасти Case IH 265 (7-06) - PARKING BRAKE (07) - BRAKES

1

1963421C1

RATCHET

- parking brake

1шт.

2

1963254C1

PIN

- pivot

2шт.

3

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

4

1282706C1

AXLE PIN

PIN - hair

2шт.

5

1963310C1

LEVER

- parking

1шт.

6

1963311C1

ROD

- parking

1шт.

7

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

2шт.

8

30450R1

COTTER PIN,M2.5 x 16

PIN - cotter, 2 x 16 mm

1шт.

9

1269552C1

VALVE SPRING

SPRING - brake rod

1шт.
