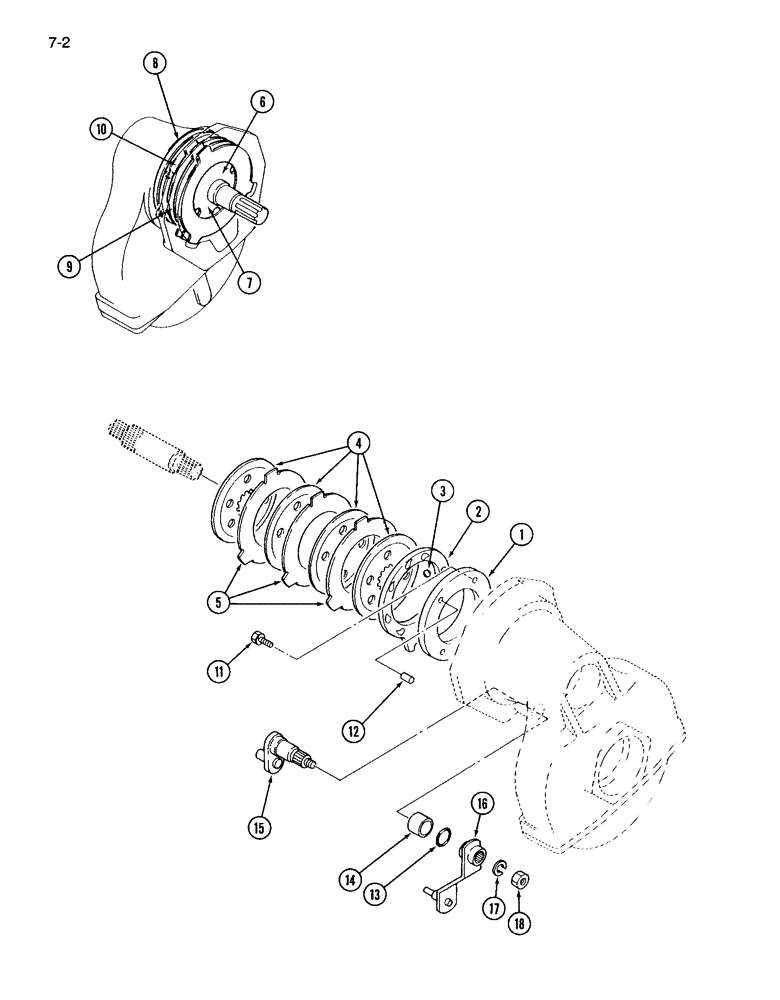

Запчасти Case IH 265 (7-02) - BRAKES (07) - BRAKES

1963390C1

BRAKE ASSY.

BRAKE ASSEMBLY - left, Includes: Ref. 1 - 5

1шт.

1

1962183C1

GUIDE

- ball

1шт.

2

1962184C1

PLATE ASSY.

PLATE - cam

1шт.

3

1962481C1

BALL

- steel

8шт.

1963600C1

DISC

ASSEMBLY - brake

1шт.

4

NSS

NOT SOLD SEPARAT

DISK - brake

4шт.

5

NSS

NOT SOLD SEPARAT

PLATE - brake

3шт.

1963391C1

BRAKE ASSY.

BRAKE ASSEMBLY - right, Includes: Ref. 6 - 10

1шт.

6

1962188C1

GUIDE

- ball

1шт.

7

1962186C1

PLATE ASSY.

PLATE - cam

1шт.

8

1962481C1

BALL

- steel

8шт.

Use 1963625C1 Package

1шт.

1963600C1

DISC

ASSEMBLY - brake

1шт.

9

NSS

NOT SOLD SEPARAT

DISC - brake

4шт.

10

NSS

NOT SOLD SEPARAT

PLATE - brake

3шт.

11

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

933965R1

LOCK WASHER,M10

4шт.

12

30346R1

DOWEL,M10 x 20

PIN - dowel, hardened

4шт.

13

1269873C1

O-RING

O-RING - 21 mm ID

2шт.

14

1963021C1

BUSHING

- brake arm

2шт.

15

1962171C1

ARM

- brake, inner

2шт.

16

1963400C1

ARM

- brake

2шт.

17

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

18

1282748C1

NUT

- hex, jam M12

2шт.
