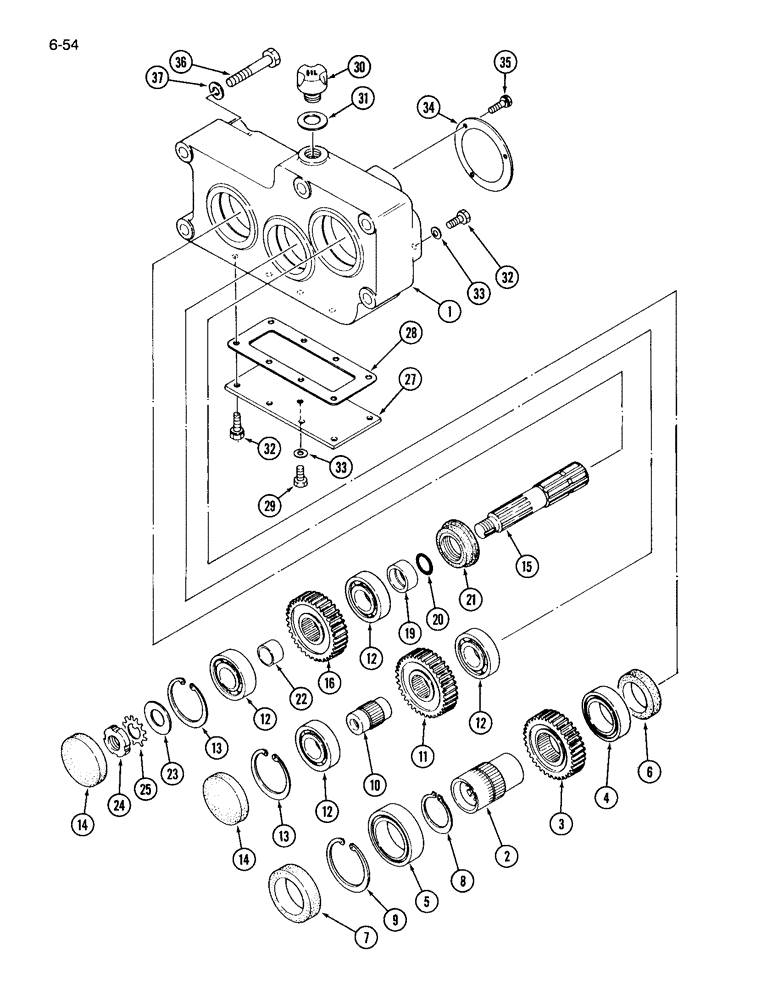

Запчасти Case IH 265 (6-54) - CENTER REAR POWER TAKEOFF (06) - POWER TRAIN

99056C91

ATTACHMENT - center rear PTO (Machinery Item), Includes: Ref. 1 - 37

1шт.

1

1963168C1

CASE

HOUSING - center PTO

1шт.

2

1963169C1

SHAFT

- drive, PTO

1шт.

3

1963170C1

GEAR

- 35 tooth

1шт.

4

1963182C1

BEARING

- PTO drive shaft

1шт.

5

1271854C91

BEARING, BALL

BEARING - PTO drive shaft

1шт.

6

1963183C1

OIL SEAL

SEAL - oil, drive shaft

1шт.

7

1963184C1

OIL SEAL

SEAL - oil, drive shaft

1шт.

8

933088R1

SNAP RING,M50, Ext

RING - retaining, external, 46 mm ID

1шт.

9

933154R1

SNAP RING,M80, Int

RING - retaining, internal, 86 mm OD

1шт.

10

1963171C1

SHAFT

- counter

1шт.

11

1963172C1

GEAR

- 34 tooth

1шт.

12

1271866C91

BALL BEARING

- PTO and counter shaft

4шт.

13

933076R1

SNAP RING,M72, Int

RING - retaining, internal, 77 mm OD

2шт.

14

1963185C1

SEAL ASSY.

SEAL - cap

2шт.

15

1963173C1

SHAFT

- PTO

1шт.

16

1963174C1

GEAR

- 35 tooth

1шт.

19

1269424C1

BUSHING

- PTO shaft

1шт.

20

1269884C1

O-RING

O-RING - PTO shaft

1шт.

21

1275073C1

OIL SEAL

SEAL - oil

1шт.

22

1963175C1

BUSHING

- PTO shaft

1шт.

23

1963186C1

WASHER

- PTO shaft

1шт.

24

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT - bearing lock, M25 x 1.5

1шт.

25

31101R1

LOCK WASHER

- bearing lock, 25 mm

1шт.

27

1963176C1

PLATE

- PTO housing

1шт.

28

1963177C1

GASKET

- housing plate

1шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

8шт.

30

1963178C1

CAP

- oil fill

1шт.

31

1963179C1

RUBBER SEAL

SEAL - rubber packing

1шт.

32

1963180C1

BOLT

- plug

2шт.

33

1963187C1

WASHER

SEAL - washer

2шт.

34

1963181C1

COVER

- PTO housing

1шт.

35

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

933833R1

LOCK WASHER,M6

3шт.

36

30844R1

BOLT,Hex, M14 x 2 x 90mm, Cl 8.8

5шт.

37

892-1114

LOCK WASHER,M14

WASHER - lock, 14 mm

5шт.
