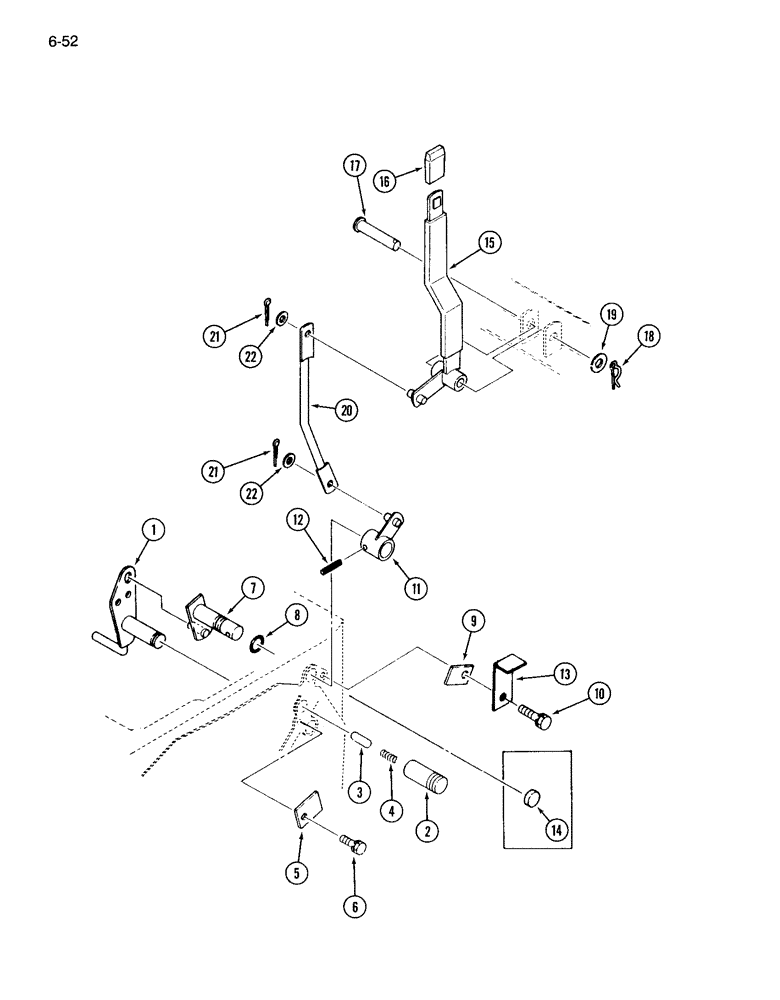

Запчасти Case IH 265 (6-52) - SYNCHROMESH TRANSMISSION, MID POWER TAKEOFF (06) - POWER TRAIN

1

99240C1

SHIFT RAIL

SHIFTER - mid power takeoff

1шт.

2

99397C1

BOSS

- shift position pin

1шт.

3

99396C1

KEY

PIN - shift position

1шт.

4

1273482C1

VALVE SPRING

SPRING - shift position pin

1шт.

5

99398C1

PLATE ASSY.

PLATE - retainer

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

7

99241C1

SHIFT RAIL

SHIFTER - mid power take off

1шт.

8

1288101C1

O-RING

O-RING - 16mm ID

1шт.

9

99242C1

PLATE ASSY.

PLATE - retainer

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

1шт.

11

1963284C1

ARM

- mid power takeoff

1шт.

12

591184R1

PIN,3/16" x 1 1/4", Coiled

- slotted spring, 5 x 32 mm

1шт.

13

1963286C1

PLATE

- retainer

1шт.

14

1962638C1

SEAL

CAP - seal (Constant mesh transmission)

1шт.

15

1963285C1

LEVER ASSY.

LEVER ASSEMBLY - mid PTO

1шт.

16

1273379C1

KNOB

- lever grip

1шт.

17

1963254C1

PIN

- lever pivot

1шт.

18

1282706C1

AXLE PIN

PIN - hair

1шт.

19

933587R1

WASHER,M12 x 24 x 2.5

- flat, 13 x 24 x 3 mm

1шт.

20

1963383C1

ROD

- mid PTO shift link

1шт.

21

30450R1

COTTER PIN,M2.5 x 16

PIN - cotter, 2.5 x 16 mm

2шт.

22

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

2шт.
