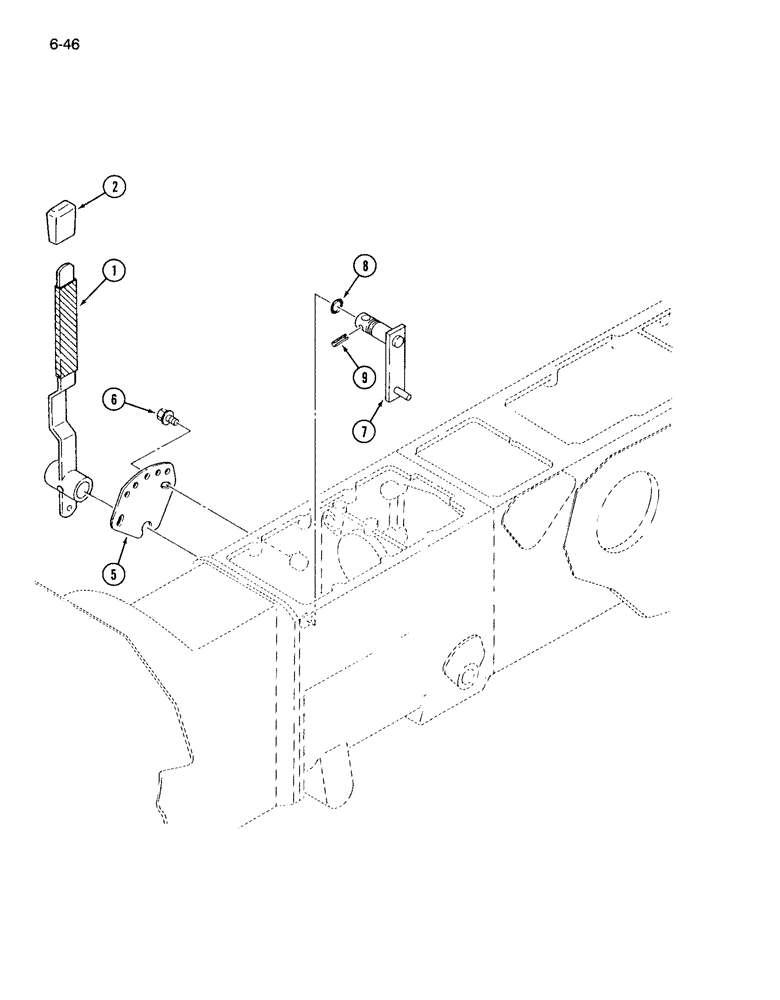

Запчасти Case IH 265 (6-46) - POWER TAKEOFF CONTROLS (06) - POWER TRAIN

1

1275171C91

LEVER

ASSEMBLY - power takeoff

1шт.

2

99326C1

KNOB

- power takeoff lever

1шт.

5

1273504C1

SUPPORT ASSY.

PLATE - support

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

2шт.

7

1273505C1

ARM

- power takeoff

1шт.

8

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

9

591184R1

PIN,3/16" x 1 1/4", Coiled

- slotted spring, 5 x 32 mm

1шт.
