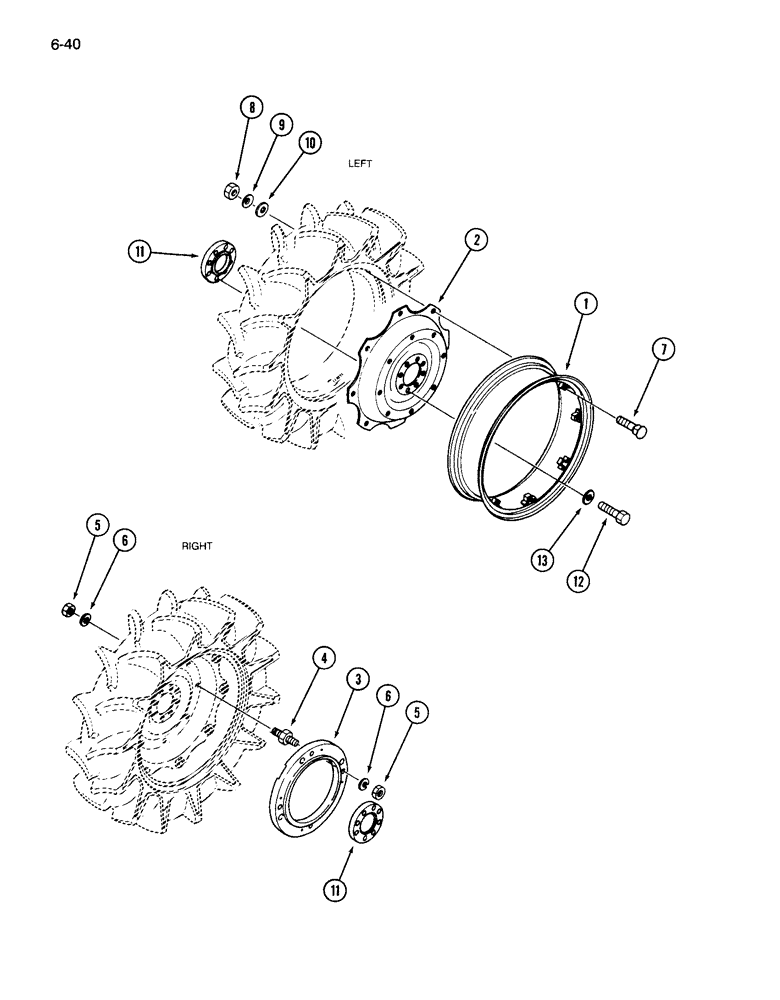

Запчасти Case IH 265 (6-40) - REAR WHEELS, 2 PIECE RIM AND DISC, 36 INCH DIAMETER (06) - POWER TRAIN

1

1963519C1

RIM

- wheel, W10 x 36 (For 11.2-36R1 rear tire)

2шт.

2

1963358C1

DISC

- wheel

2шт.

3

REF

INSTRUCTION

WEIGHT - rear wheel (right wheel) (see figure 6-44)

1шт.

4

1963518C1

BOLT

- wheel (right wheel)

4шт.

5

825-1116

NUT,M16, Cl 8

(Right wheel) M16, Cl 8

8шт.

6

934185R1

LOCK WASHER,M16

WASHER - lock, 16 mm (right wheel)

8шт.

7

1963338C1

BOLT

- wheel

16шт.

8

1963339C1

NUT

- wheel

16шт.

9

1963340C1

WASHER

- spring

16шт.

10

25711R1

WASHER

- flat, hardened

16шт.

11

1963521C1

SPACER

- wheel

2шт.

12

514-1020

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8, Full Thd

16шт.

13

30329R1

WASHER,M17.5 x 30 x 4, HT

- flat, 17 x 30 x 4 mm

16шт.
