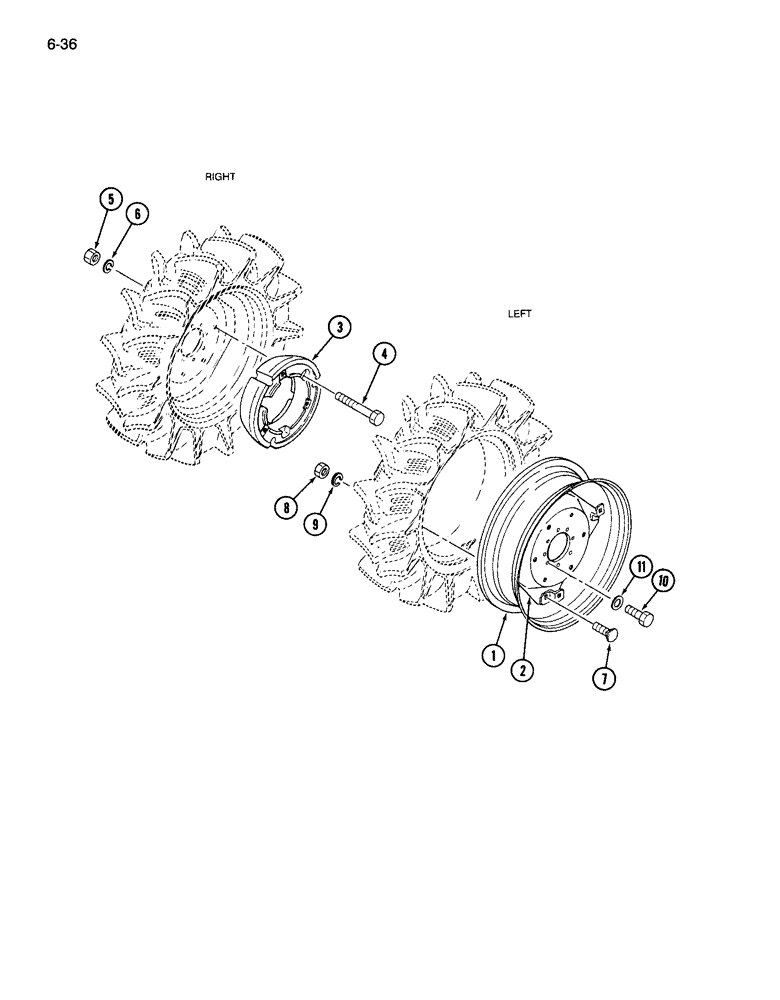

Запчасти Case IH 265 (6-36) - REAR WHEELS, 2 PIECE RIM AND DISC, 24 INCH DIAMETER (06) - POWER TRAIN

1

1962441C1

RIM

- wheel, W10 x 24 (For 12.4-24R1 rear tire)

2шт.

2

1963515C1

DISC

- wheel

2шт.

3

REF

INSTRUCTION

WEIGHT - rear wheel (right wheel) (see figure 6-42)

1шт.

4

514-1015

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

(right wheel) Hex, M16 x 1.5 x 90, 8.8

3шт.

5

525-5109

NUT,M16 x 1.5, Cl 8

- hex, M16 (right wheel)

3шт.

6

934185R1

LOCK WASHER,M16

WASHER - lock, 16 mm (right wheel)

3шт.

7

1271851C1

BOLT,M16 x 1.5 x 37mm

BOLT - wheel, M16

8шт.

8

525-5109

NUT,M16 x 1.5, Cl 8

- hex, M16

8шт.

9

934185R1

LOCK WASHER,M16

WASHER - lock, 16 mm

8шт.

10

514-1019

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

16шт.

11

30329R1

WASHER,M17.5 x 30 x 4, HT

- flat, 17 x 30 x 4 mm

16шт.
