(6-32) - REAR AXLE FINAL DRIVE

Запчасти Case IH 265 (6-32) - REAR AXLE FINAL DRIVE (06) - POWER TRAIN

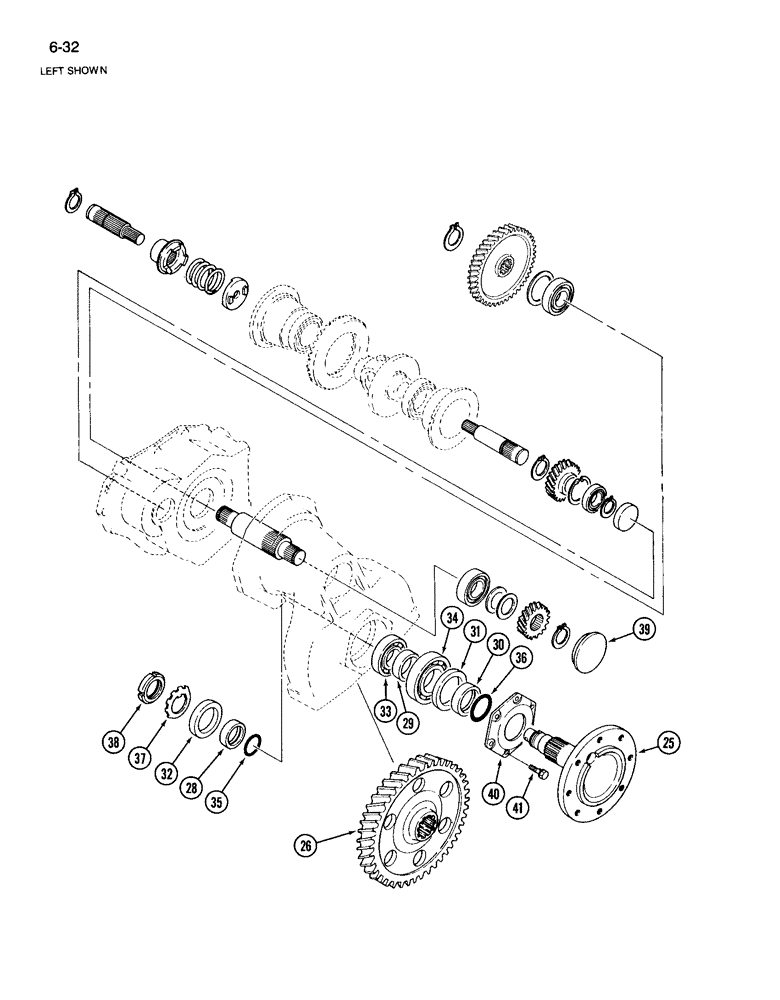

Схема запчастей Case IH 265 - (6-32) - REAR AXLE FINAL DRIVE (06) - POWER TRAIN
41
35
32
33
2
38
34
36
25
26
37
39
31
28
30
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Continued from figure 6-30

1шт.

25

1963401C1

SHAFT

- axle, rear

2шт.

26

1963402C1

GEAR

- 85 tooth, left

1шт.

26

1963405C1

GEAR

- 85 tooth, right

1шт.

28

1963294C1

BUSHING

- rear axle shaft

2шт.

29

1963295C1

COLLAR

- rear axle shaft

2шт.

30

1963296C1

BUSHING

- rear axle shaft

2шт.

31

1963297C1

OIL SEAL

- oil

2шт.

32

1963244C1

OIL SEAL

- oil

2шт.

33

1963298C1

BUSHING

BEARING - ball

2шт.

34

1963243C1

BEARING ASSY

- ball

2шт.

35

1269881C1

O-RING

O-RING - axle shaft

2шт.

36

1963245C1

O-RING

- axle shaft

2шт.

37

31169R1

LOCK WASHER

- bearing lock, M40

2шт.

38

31170R1

LOCK NUT,M40 x 1.5, Bearing

NUT - bearing lock, M40 x 1.5

2шт.

39

1963301C1

SEAL

- cap

2шт.

40

1963404C1

COVER

- drop housing

2шт.

41

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

933965R1

LOCK WASHER,M10

12шт.
