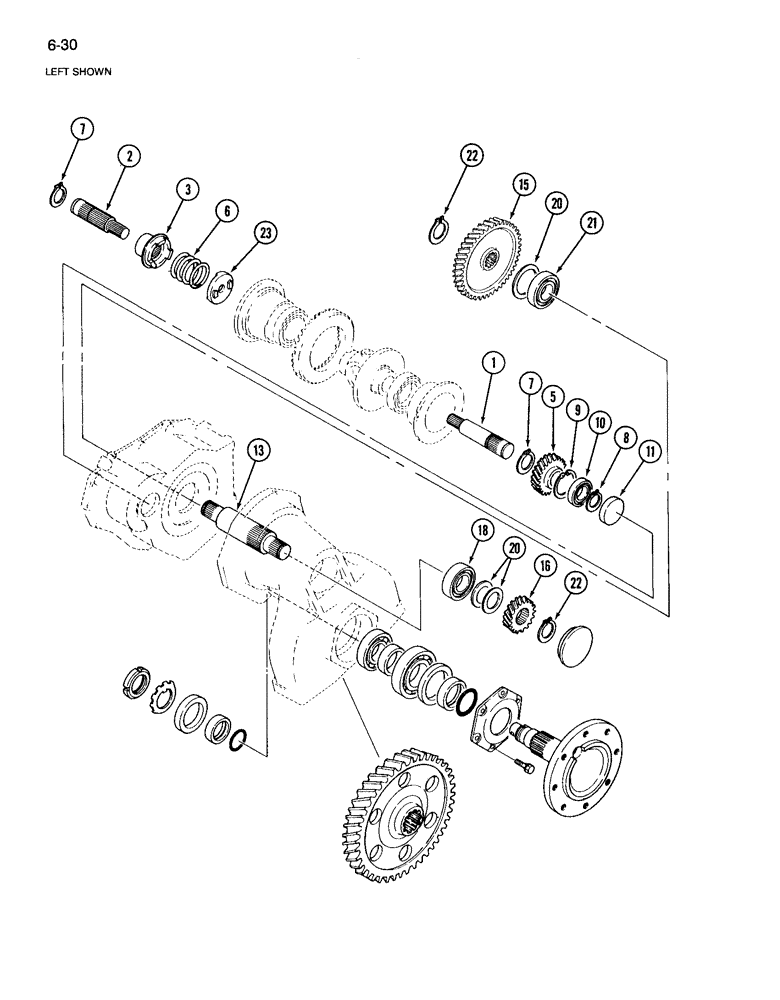

Запчасти Case IH 265 (6-30) - REAR AXLE FINAL DRIVE (06) - POWER TRAIN

1

1963395C1

SHAFT

- differential, left

1шт.

2

1963396C1

SHAFT

- differential, right

1шт.

3

1963289C1

SLEEVE

- differential, shaft

1шт.

5

1963291C1

GEAR

- 24 tooth

2шт.

6

1963292C1

SPRING

- differential, shaft

1шт.

7

933075R1

SNAP RING,M40, Ext

RING - retaining, external, 36 mm ID

2шт.

8

933029R1

SNAP RING,M35, Ext

RING - retaining, external, 32 mm ID

2шт.

9

933076R1

SNAP RING,M72, Int

RING - retaining, internal, 77 mm OD

2шт.

10

1271859C91

BEARING, BALL

BEARING - ball

2шт.

11

1963242C1

SEAL ASSY.

CAP - seal

2шт.

13

1963397C1

SHAFT

- final drive, left

1шт.

13

1963398C1

SHAFT

- final drive, right

1шт.

15

1963399C1

GEAR

- 52 tooth

2шт.

16

1963293C1

GEAR

- 22 tooth, left

1шт.

16

1963300C1

GEAR

- 22 tooth, right

1шт.

18

1963299C1

BEARING

- ball

2шт.

1963302C1

SHIM KIT

- final drive, Includes: Ref. 20

4шт.

20

NSS

NOT SOLD SEPARAT

SHIM - 0.2 mm

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - 0.4 mm

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - 0.6 mm

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - 1.6 mm

1шт.

21

1963236C1

BEARING

- ball

2шт.

22

933075R1

SNAP RING,M40, Ext

RING - retaining, external, 36 mm ID

4шт.

23

1963593C1

SPACER

- differential, shaft

1шт.
