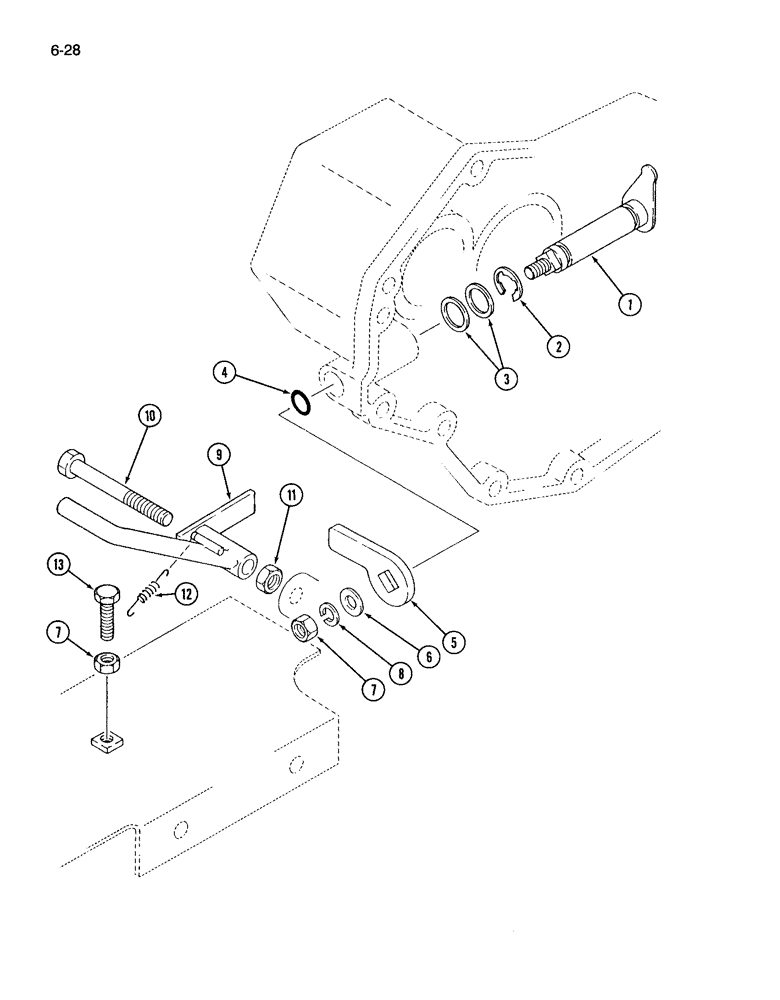

Запчасти Case IH 265 (6-28) - DIFFERENTIAL, PARK LOCK (06) - POWER TRAIN

1

1963388C1

SHIFT RAIL

LEVER - park lock

1шт.

2

1271818C1

CIRCLIP,M13

RING - retaining

1шт.

3

1269551C1

SET

SHIM KIT - lever

1шт.

4

1269870C1

O-RING

O-RING - 11 mm ID

1шт.

5

1269484C1

ARM

- park lock

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

- flat, 8 x 21 x 2 mm

1шт.

7

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

2шт.

8

934309R1

LOCK WASHER,M8

WASHER - lock, 10 mm

1шт.

9

1963288C1

PEDAL

- differential lock

1шт.

10

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

1шт.

11

825-1112

NUT,M12, Cl 8

- hex, M12

1шт.

12

1269552C1

VALVE SPRING

SPRING - park lock pedal

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

1шт.
