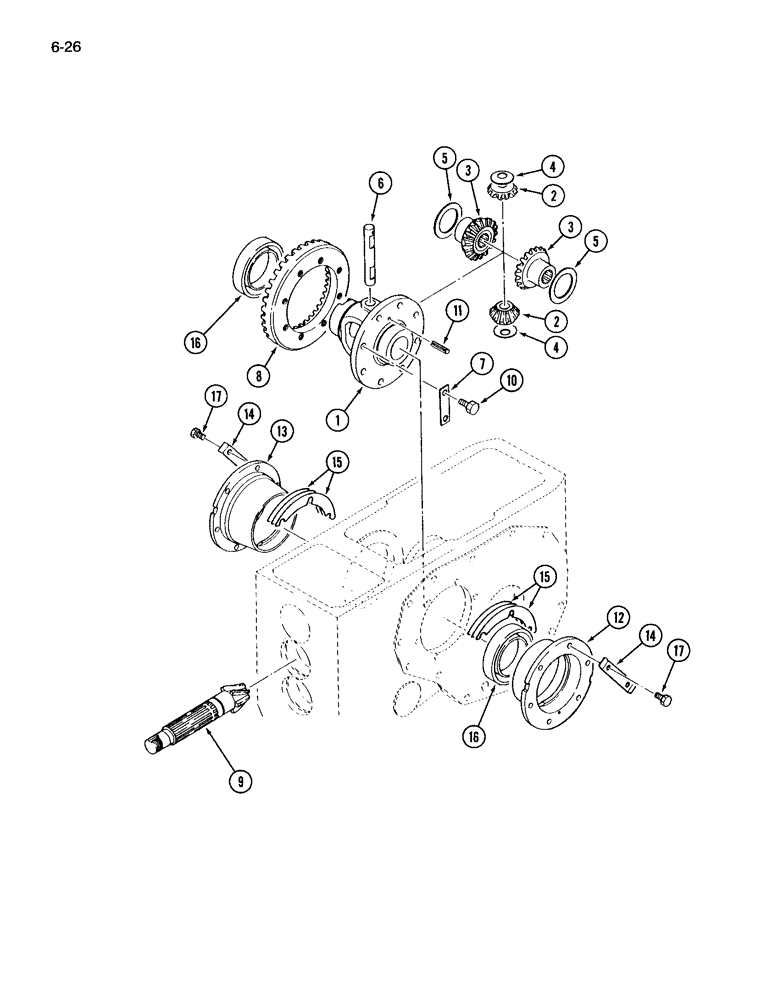

Запчасти Case IH 265 (6-26) - DIFFERENTIAL (06) - POWER TRAIN

1

1963385C1

CASE

HOUSING - differential

1шт.

1282939C1

STRIPPER PACKAGE

GEAR KIT - differential, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - bevel, 10 tooth

2шт.

3

NSS

NOT SOLD SEPARAT

GEAR - side, 16 tooth

2шт.

4

NSS

NOT SOLD SEPARAT

WASHER - thrust

2шт.

5

NSS

NOT SOLD SEPARAT

WASHER - thrust

2шт.

6

1269596C1

SHAFT HOUSING

SHAFT - side gear

1шт.

7

1269595C1

BAR

STRAP - locking

4шт.

1963287C1

GEAR-SET

PINION AND RING GEAR - differential, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

11

31122R1

LOCK PIN,M6 x 40, Slotted

PIN - slotted spring, 6 x 40 mm

1шт.

12

1269547C1

BEARING HOUSING

HOLDER - bearing, left

1шт.

13

1269548C1

NOZZLE HOLDER

HOLDER - bearing, right

1шт.

14

1269539C1

BAR

STRAP - locking

6шт.

15

1273259C1

SHIM

KIT - differential

1шт.

16

1265194C91

BALL BEARING,60 mm ID x 95 mm OD x 18 mm

BEARING ASSEMBLY

2шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

12шт.
