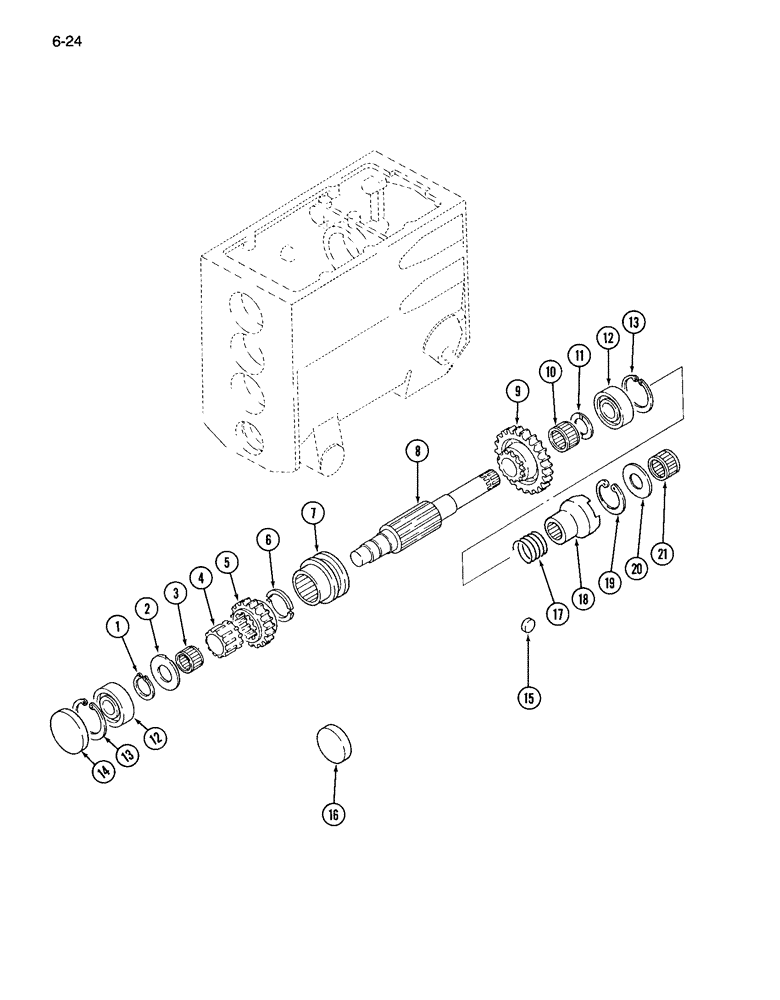

Запчасти Case IH 265 (6-24) - SELECTOR AND COUNTER GEAR LOWER (06) - POWER TRAIN

1

933074R1

SNAP RING,M28, Ext

RING - retaining, external, 26 mm ID

1шт.

2

1273578C1

WASHER

- grooved, 52 mm OD

1шт.

3

1273328C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.

4

1269524C1

HUB

- splined

1шт.

5

1269525C2

GEAR WHEEL

GEAR - 24 tooth

1шт.

6

1269526C1

RING

- split

2шт.

7

1269527C3

CLUTCH ASSEMBLY

CLUTCH - splined, 25 tooth

1шт.

8

99362C1

SHAFT HOUSING

SHAFT - splined

1шт.

9

1269523C1

GEAR WHEEL

GEAR - 30 tooth

1шт.

10

1273329C91

NEEDLE BEARING

ASSEMBLY - needle

1шт.

11

1273579C1

WASHER

- grooved, 42 mm OD

1шт.

12

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

2шт.

13

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

2шт.

14

1269508C1

PLUG

- rubber

1шт.

15

1269511C1

PLUG

- rubber (2 Wheel Drive)

1шт.

16

1269521C1

PLUG

- rubber (2 Wheel Drive)

1шт.

17

1269426C1

VALVE SPRING

SPRING - clutch

1шт.

18

1269427C1

CLUTCH ASSEMBLY

CLUTCH - splined, 18 tooth

1шт.

19

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

20

1962600C1

WASHER

- flat

1шт.

21

1273327C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.
