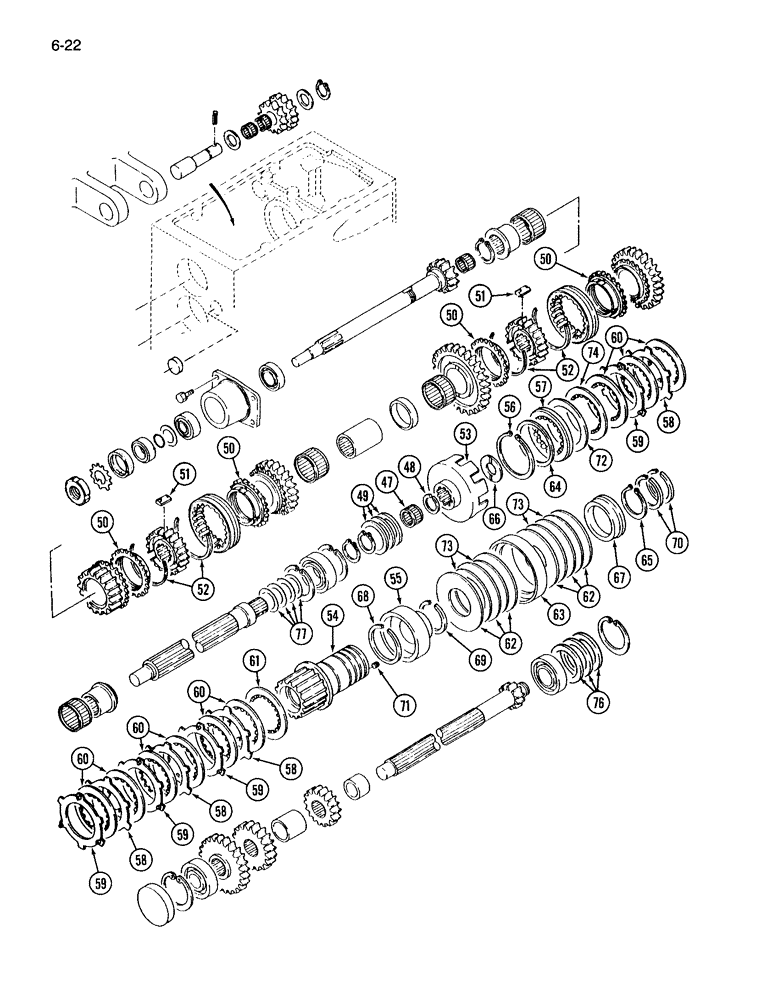

Запчасти Case IH 265 (6-22) - SELECTOR AND COUNTER GEAR UPPER, SYNCHROMESH TRANSMISSION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
Continued from figure 6-20
1шт.
47
1273557C91
NEEDLE BEARING
ASSEMBLY - needle
1шт.
48
1282616C1
RING
- retaining
1шт.
49
1282618C1
SET
SHIM KIT - clutch
1шт.
50
1282619C1
SYNCHRONIZER
- transmission
4шт.
51
1282620C1
KEY
- gear
6шт.
52
1282621C1
VALVE SPRING
SPRING - retaining
4шт.
53
1282623C1
COVER ASSY
COVER - clutch
1шт.
54
NSS
NOT SOLD SEPARAT
HUB ASSEMBLY - clutch (Order 1282624C2)
1шт.
55
1282625C1
PISTON ASSY.
PISTON - clutch
1шт.
56
703696R1
RING
- retaining, external, 55 mm ID
1шт.
57
1282626C1
PLATE ASSY.
PLATE - back, 34 tooth
1шт.
1282627C1
STRIPPER PACKAGE
KIT - driven disc assembly, Includes: Ref. 58 - 60
1шт.
58
NSS
NOT SOLD SEPARAT
PLATE - driven (Order 1282627C1)
4шт.
59
NSS
NOT SOLD SEPARAT
PLATE ASSEMBLY - clutch (Order 1282627C1)
4шт.
60
NSS
NOT SOLD SEPARAT
DISC ASSEMBLY - clutch (Order 1282627C1)
9шт.
61
1282628C1
PLATE ASSY.
PLATE - 34 tooth
1шт.
1282629C2
SPRING
KIT - clutch disc spring (Includes Ref. 73), Includes: Ref. 62 and 63
1шт.
62
NSS
NOT SOLD SEPARAT
DISC - spring (Order 1282629C2)
4шт.
63
NSS
NOT SOLD SEPARAT
SUPPORT - spring (Order 1282629c2)
1шт.
64
1282630C1
SET
SHIM KIT - clutch
1шт.
65
1282617C1
RING
- retaining
1шт.
66
1282631C1
WASHER
- clutch
1шт.
67
1282632C1
GUIDE
- spring
1шт.
1287758C2
SEALING RING
- seal ring, Includes: Ref. 68 and 69
1шт.
68
NSS
NOT SOLD SEPARAT
RING - seal
1шт.
69
NSS
NOT SOLD SEPARAT
RING - seal
1шт.
70
1282635C1
RING
- seal
2шт.
1282624C2
HUB CAP
HUB ASSEMBLY - clutch (Includes Ref. 54)
1шт.
71
NSS
NOT SOLD SEPARAT
PLUG - clutch hub (Order 1282624C2)
1шт.
72
1282636C1
SPRING WASHER
SPRING - wave
1шт.
73
NSS
NOT SOLD SEPARAT
SPACER - clutch (Order 1282629C2)
4шт.
74
1282637C1
PLATE ASSY.
PLATE - 34 tooth
1шт.
76
1273013C2
STRIPPER PACKAGE
SHIM KIT - range shaft
1шт.
77
1282797C1
SHIM
- bearing hub
1шт.
Выбрано товаров: 35
