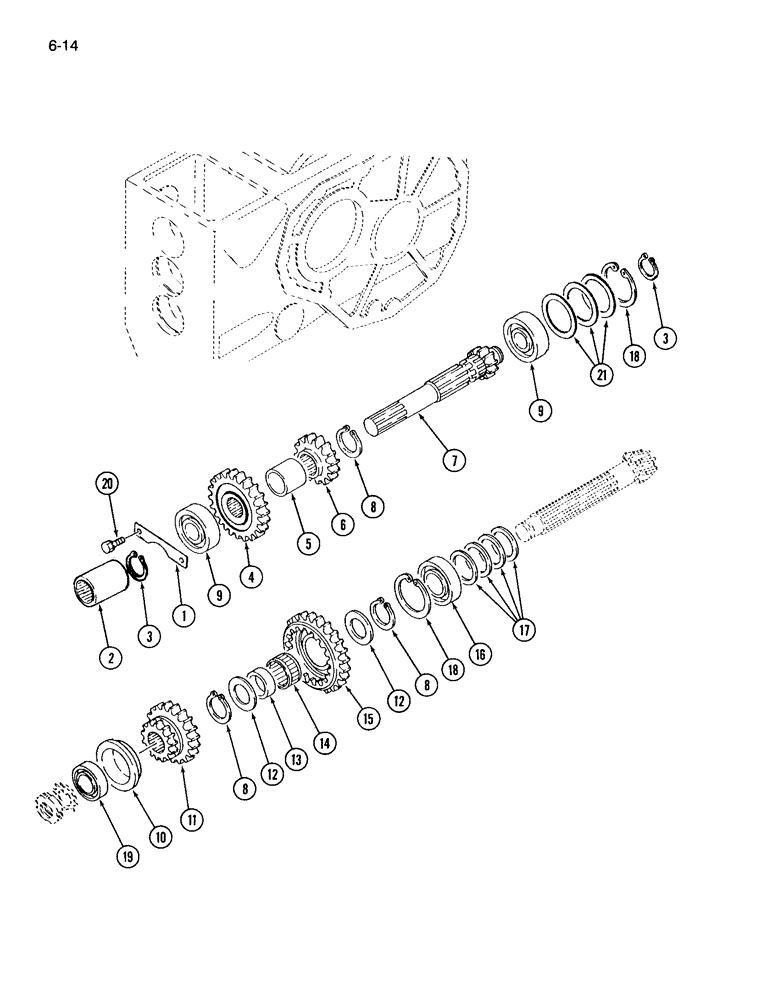

Запчасти Case IH 265 (6-14) - RANGE GEARS, CONSTANT MESH TRANSMISSION (06) - POWER TRAIN

1

1269529C1

SUPPORT ASSY.

STRAP - locking

1шт.

2

1269531C1

COUPLING

- pinion shaft

1шт.

3

933128R1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

2шт.

4

1269530C1

GEAR WHEEL

GEAR - 37 tooth

1шт.

5

1269534C1

SPACER

- gear

1шт.

6

1963283C1

GEAR

- 20 tooth

1шт.

7

1269537C2

SHAFT HOUSING

SHAFT - pinion gear

1шт.

8

933086R1

SNAP RING,M30, Ext

- retaining, external, 28 mm ID

3шт.

9

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - pinion shaft

2шт.

10

1269536C1

NOZZLE HOLDER

HOLDER - bearing

1шт.

11

1963381C1

GEAR

- 27 and 19 tooth

1шт.

12

1273133C1

WASHER

- thrust

2шт.

13

1269535C1

SPACER

- inner race

1шт.

14

1273330C91

NEEDLE BEARING

BEARING - needle

1шт.

15

1963378C1

GEAR

- 43 and 27 tooth

1шт.

16

1273014C92

TAPERED BEARING

BEARING ASSEMBLY - pinion shaft

1шт.

17

1273012C1

STRIPPER PACKAGE

SHIM KIT - pinion shaft

1шт.

18

933108R1

SNAP RING,M62, Int

RING - retaining, internal, 66 mm OD

2шт.

19

1273015C91

TAPERED BEARING

ASSEMBLY - roller, taper

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

21

1273013C2

STRIPPER PACKAGE

SHIM KIT - range shaft

1шт.
