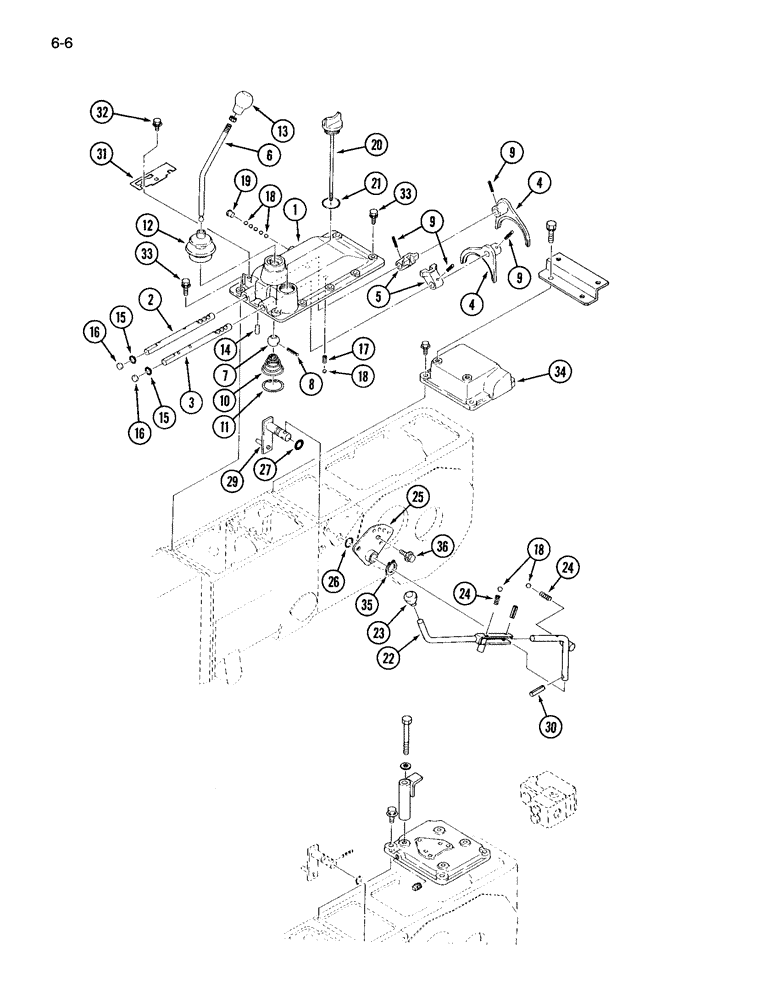

Запчасти Case IH 265 (6-06) - TRANSMISSION GEAR AND RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

1273472C1

COVER ASSY

COVER - transmission

1шт.

2

1273473C1

SHAFT HOUSING

RAIL - shift, first and reverse

1шт.

3

1273474C1

SHAFT HOUSING

RAIL - shift, second and third

1шт.

4

1273475C1

FORK TEDDER

FORK - shift

2шт.

5

1273476C1

ADAPTER

- shift rail

2шт.

1963304C1

LEVER ASSY.

LEVER ASSEMBLY - gear shift, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

LEVER - gear shift

1шт.

7

1273478C1

BALL

- shift lever

1шт.

8

30320R1

PIN,M5 x 33, Coiled

- coiled spring, 5 x 32 mm

1шт.

9

31121R1

LOCK PIN,M6 x 26, Slotted

PIN - slotted spring, 6 x 26 mm

4шт.

10

1273479C1

VALVE SPRING

SPRING - shift lever

1шт.

11

933032R1

SNAP RING,M52, Int

RING - retaining, internal, 56 mm OD

1шт.

12

1273480C1

INSULATOR

COVER - shift lever

1шт.

13

1962202C1

GRIP

KNOB - shift lever

1шт.

14

30346R1

DOWEL,M10 x 20

PIN - dowel, 10 x 20 mm

2шт.

15

3053126R1

SNAP RING,M16, Int

RING - retaining, internal 17 mm OD

2шт.

16

1273481C1

PLUG

- shift rails

2шт.

17

1273482C1

VALVE SPRING

SPRING - shift detent

2шт.

18

17011R1

BALL

- 11/32 inch diameter

9шт.

19

1273484C1

PLUG

- transmission cover

1шт.

20

1288410C1

GAUGE ASSY.

GAGE - transmission oil level

1шт.

21

1269877C1

O-RING

- 28 mm ID

1шт.

22

1963407C1

LEVER

- upper range

1шт.

23

1273483C1

KNOB

- upper range lever

1шт.

24

1273456C1

VALVE SPRING

SPRING - upper range lever

2шт.

25

1273487C2

PLATE ASSY.

PLATE - guide

1шт.

26

1269876C1

O-RING

O-RING - 26 mm ID

1шт.

27

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

29

1273488C2

LEVER

- shift

1шт.

30

30320R1

PIN,M5 x 33, Coiled

- coiled spring, 5 x 32 mm

1шт.

31

1273489C1

SUPPORT ASSY.

PLATE - gear shift lever

1шт.

32

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

33

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

10шт.

25709R1

WASHER

- flat, 11 x 21 x 2 mm

10шт.

933965R1

LOCK WASHER,M10

10шт.

34

1275223C1

COVER ASSY

COVER - differential housing (Constant mesh transmission only)

1шт.

35

933105R1

SNAP RING,M22, Ext

RING - retaining, external, 20 mm ID

1шт.

36

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

2шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.
