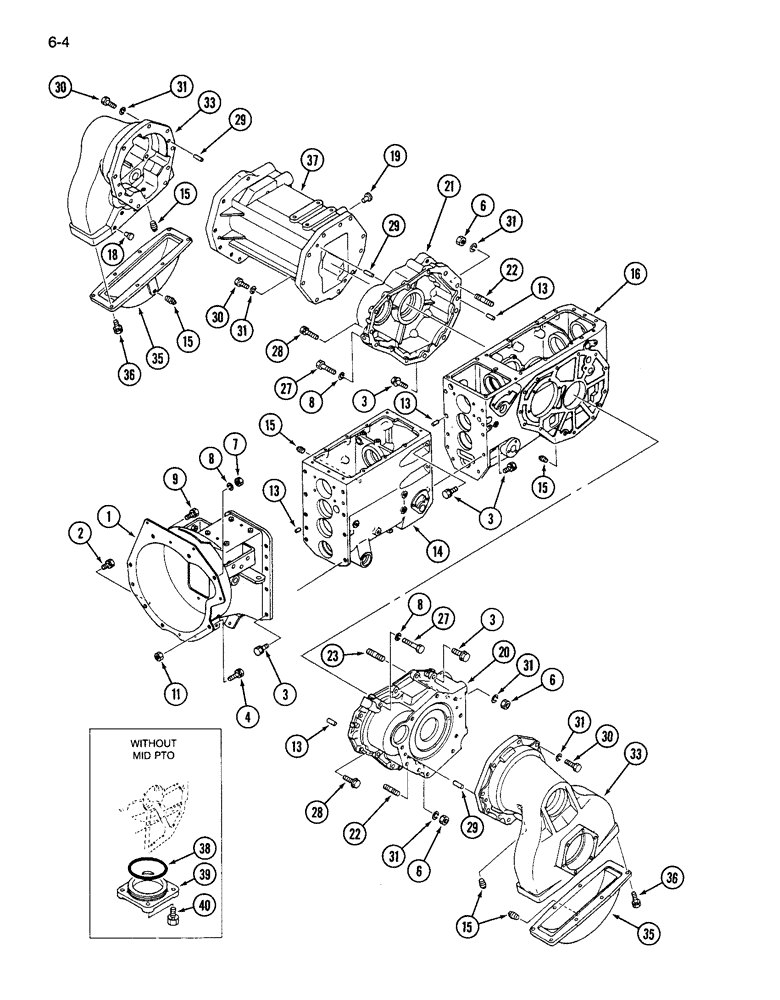

Запчасти Case IH 265 (6-04) - HOUSINGS, CLUTCH, TRANSMISSION, DIFFERENTIAL AND REAR AXLE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1963374C1
HOUSING
- clutch
1шт.
2
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
- hex, M8 x 16 mm
4шт.
934309R1
LOCK WASHER,M8
WASHER - lock, 8 mm
4шт.
3
514-832
BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd
16шт.
933966R1
LOCK WASHER,M12
WASHER - lock, 12 mm
16шт.
4
514-834
BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd
- hex, M12 x 30 mm
4шт.
933966R1
LOCK WASHER,M12
WASHER - lock, 12 mm
4шт.
6
825-1112
NUT,M12, Cl 8
- hex, M12
6шт.
7
525-5100
NUT,M10 x 1.25, Cl 8
- hex, M10
1шт.
8
933965R1
LOCK WASHER,M10
3шт.
9
514-821
BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd
- hex, M12 x 40 mm
2шт.
933966R1
LOCK WASHER,M12
WASHER - lock, 12 mm
2шт.
11
525-5115
NUT,M12 x 1.25, Cl 8
- hex, M12
4шт.
13
30346R1
DOWEL,M10 x 20
PIN - dowel, mm M10 x 20
8шт.
14
1269495C1
HOUSING
- transmission
1шт.
15
103885
PLUG,Slotted, 3/8" NPT
- slotted, headless, 3/8 PT
7шт.
16
99358C1
HOUSING
- differential
1шт.
18
NSS
NOT SOLD SEPARAT
PLUG - housing
14шт.
19
NSS
NOT SOLD SEPARAT
PLUG - housing
6шт.
20
1963389C1
HOUSING
- axle, rear left
1шт.
21
1963392C1
HOUSING
- axle, rear right
1шт.
22
1963231C1
BOLT
STUD - M12 x 40 mm
4шт.
23
1963232C1
BOLT
STUD - M12 x 50 mm
2шт.
27
514-728
BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8
- hex, M10 x 65 mm
2шт.
28
514-702
BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd
- hex, M10 x 35mm
12шт.
933965R1
LOCK WASHER,M10
14шт.
29
30346R1
DOWEL,M10 x 20
PIN - dowel, mm M10 x 20
6шт.
30
614-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
- hex, M12 x 40 mm
29шт.
31
933966R1
LOCK WASHER,M12
WASHER - lock, 12 mm
35шт.
33
1963394C1
HOUSING
- rear axle drop
2шт.
35
1963403C1
COVER
- rear axle drop housing
2шт.
36
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
16шт.
934309R1
LOCK WASHER,M8
WASHER - lock, 8 mm
16шт.
37
1963393C1
CASE
- rear axle off set
1шт.
38
1962627C1
O-RING
- cover (Without MID mount PTO)
1шт.
39
1962596C1
COVER ASSY
COVER - housing (Without MID mount PTO)
1шт.
40
514-832
BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd
4шт.
933966R1
LOCK WASHER,M12
WASHER - lock, 12 mm
4шт.
Выбрано товаров: 38
