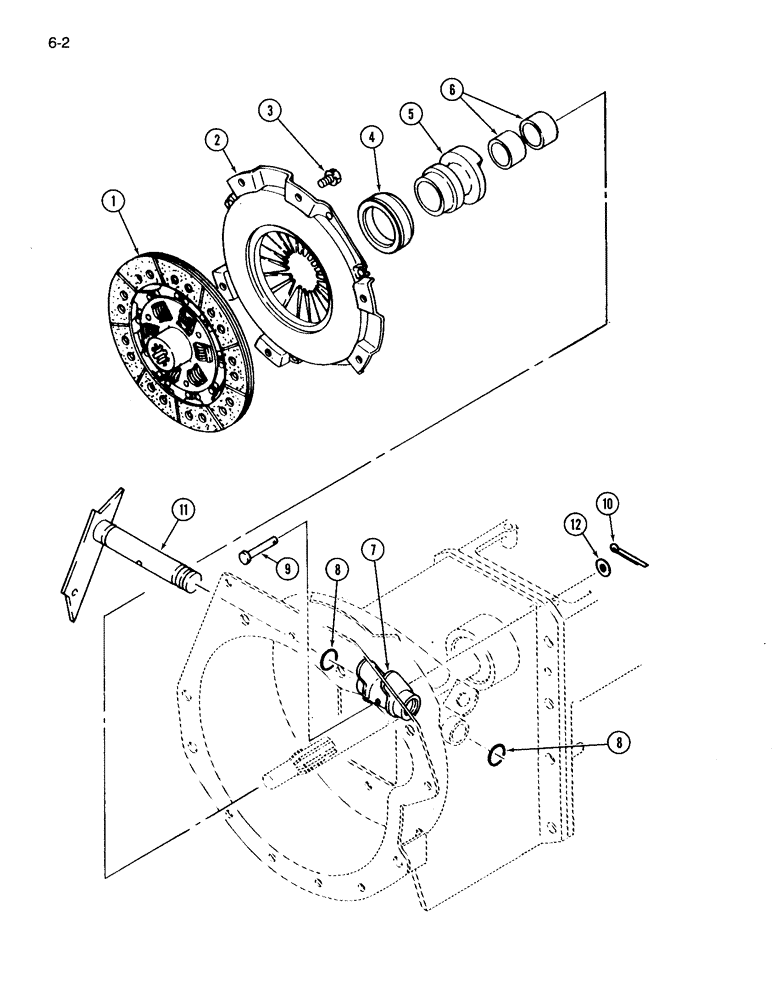

Запчасти Case IH 265 (6-02) - ENGINE CLUTCH (06) - POWER TRAIN

1

1273253C1

CLUTCH ASSEMBLY

- disc

1шт.

1

1346877C1R

REMAN-CLUTCH DISC

1шт.

1

1346877C1C

CORE-CLUTCH DISC

Return Number

1шт.

2

1273254C1

COVER ASSY

COVER ASSEMBLY - clutch

1шт.

1273254C1R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE, N.A. Only

1шт.

2

1273254C1C

CORE-CLUTCH PLATE

Return Number, Cover Assembly, Clutch, N.A. Only

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

6шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

6шт.

4

1273237C91

BEARING,40mm ID x 70mm OD x 20mm W

ASSEMBLY - clutch release

1шт.

5

1273255C3

HUB CAP

HUB - bearing release

1шт.

6

1962547C1

BUSHING

- clutch shaft

2шт.

7

1273256C1

CLUTCH FORK

release, Serial Range: -JJC0025641

1шт.

7

1988214C1

CLUTCH FORK

release, Start Serial: JJC0025641

1шт.

8

1269891C1

O-RING

O-RING - clutch release shaft

2шт.

9

1273249C1

PIN

-clevis

1шт.

10

932951R1

COTTER PIN,M1.6 x 12

PIN - cotter, 2 x 12 mm

1шт.

11

1963375C1

SHAFT

- clutch release

1шт.

12

446179

WASHER,#12

- flat, 6 x 12 x 2 mm

1шт.
