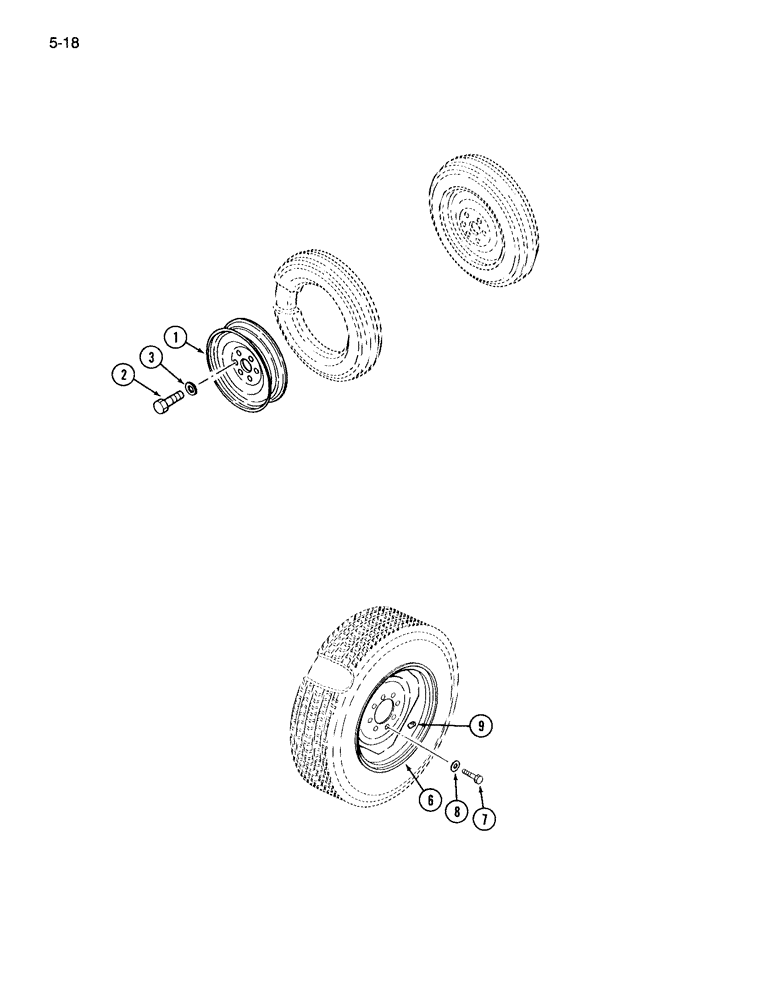

Запчасти Case IH 265 (5-18) - FRONT WHEELS, AGRICULTURAL TIRES (05) - STEERING

1

1963111C1

WHEEL (STEERING)

WHEEL - front, 4.00E x 16DC (For 5.50-16 F2 and 6.00-16 F2 front tire)

2шт.

2

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- wheel mounting

12шт.

3

30328R1

WASHER,M13.5 x 24.5 x 3, HT

- flat, 13 x 24 x 3 mm

12шт.

6

1962448C1

WHEEL (STEERING)

WHEEL - front, 7 JA x 14 WDC (for 24 x 8.50 - 14 PD turf tire)

2шт.

7

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- wheel mounting, turf tires

12шт.

8

30328R1

WASHER,M13.5 x 24.5 x 3, HT

- flat, 13 x 24 x 3 mm, turf tires

12шт.

9

NSS

NOT SOLD SEPARAT

VALVE - wheel, turf tires

2шт.
