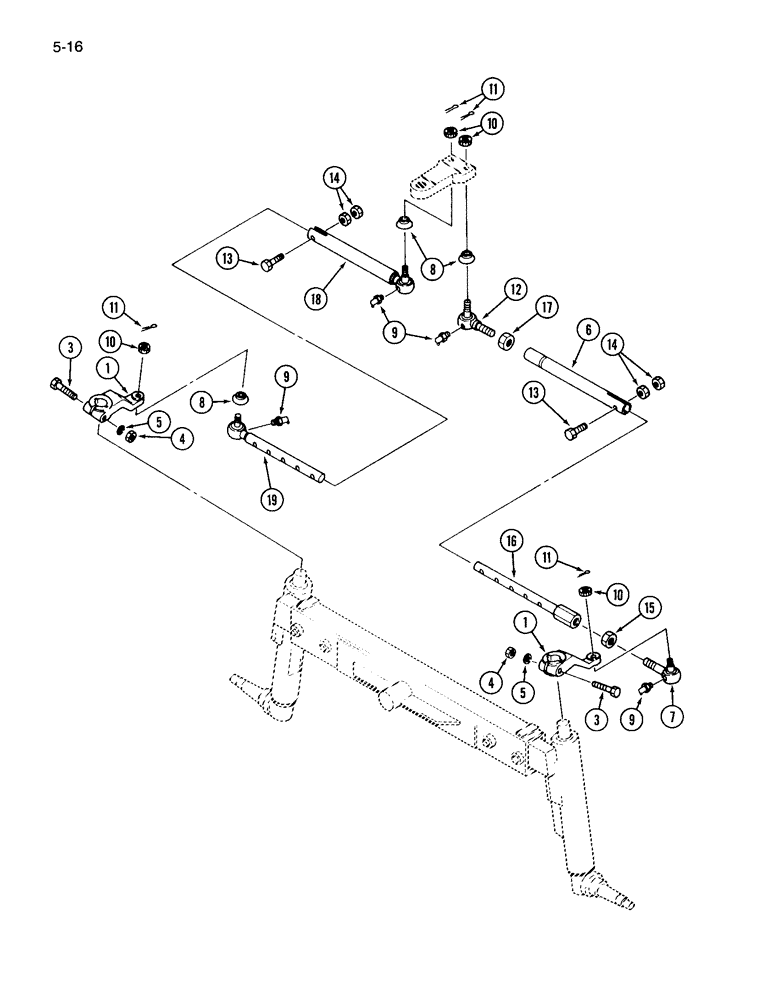

Запчасти Case IH 265 (5-16) - TIE ROD AND STEERING LINKAGE (05) - STEERING

1

1963424C1

ARM

- steering knuckle

2шт.

3

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

- hex, M10 x 70, Grade 10.9

2шт.

4

30168R1

NUT,M10, Cl 10

- hex, M10, Grade 10

2шт.

5

933965R1

LOCK WASHER,M10

2шт.

6

196218C1

TUBE - tie rod

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

7

1963553C1

SOCKET

ROD ASSEMBLY - tie, inner left, Includes: Ref. 8 - 11

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

8

1273548C1

COVER ASSY

COVER - dust

1шт.

Part of Tie Rod Assembly, right, P/N 1963428C1

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

9

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - grease, extra short, 65 degree, 1/4-18 PT

1шт.

Part of Tie Rod Assembly, right, P/N 1963428C1

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

10

1273549C1

NUT

- slotted, M12

1шт.

Part of Tie Rod Assembly, right, P/N 1963428C1

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

11

934793R1

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm

1шт.

12

1273546C91

END ASSY.

ROD ASSEMBLY - tie, outer left Includes Ref. 8, 9, 10, 11

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

13

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, M8 x 45 mm

2шт.

Part of Tie Rod Assembly, right, P/N 1963428C1

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

14

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

4шт.

Part of Tie Rod Assembly, right, P/N 1963428C1

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

15

1273544C1

NUT

- hex, special, M17

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

16

1963430C1

TIE-ROD

ROD - tie, inner

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

17

1273545C1

NUT

- hex, special, M17, left hand thread

1шт.

Part of Tie Rod Assembly, left, P/N 1963427C1

1шт.

18

1963429C1

TIE-ROD

ROD ASSEMBLY - tie, outer right Includes Ref. 8, 9, 10 and 11

1шт.

Part of Tie Rod Assembly, right, P/N 1963428C1

1шт.

19

1962106C1

ROD

ASSEMBLY - tie, inner right Includes Ref. 8, 9, 10 and 11

1шт.

Part of Tie Rod Assembly, right, P/N 1963428C1

1шт.

1963427C1

TIE-ROD

TIE ROD ASSEMBLY - left, Includes: Ref. 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17

1шт.

1963428C1

TIE-ROD

TIE ROD ASSEMBLY - right, Includes: Ref. 8, 9, 10, 13, 14, 18, 19

1шт.
