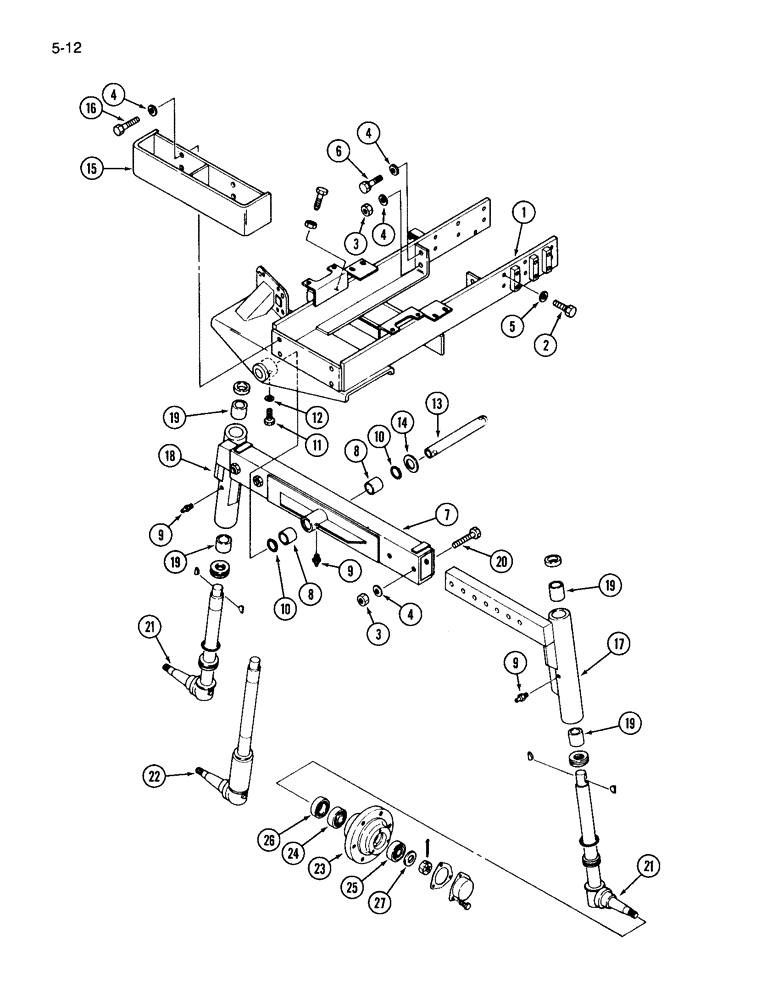

Запчасти Case IH 265 (5-12) - ADJUSTABLE FRONT AXLE (05) - STEERING

1

1963422C1

FRAME

- front axle

1шт.

2

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.

3

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

2шт.

4

30408R1

WASHER,M12 x 28.5 x 3, HT

- flat, 15 x 28 x 3 mm

12шт.

5

30328R1

WASHER,M13.5 x 24.5 x 3, HT

- hardened, 12 mm

12шт.

6

514-915

BOLT,Hex, M14 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, M14 x 35 mm

2шт.

514-915 14 x 1.5mm 35 Long

1шт.

7

1963423C1

AXLE

ASSEMBLY - center section

1шт.

8

1962084C1

BUSHING

- axle center pivot

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

3шт.

10

1962519C1

O-RING

O-RING - 29 mm ID

2шт.

11

1269753C1

BOLT

BOLT - special

1шт.

12

933966R1

LOCK WASHER,M12

WASHER - lock, 10 mm

1шт.

13

1963431C1

PIN

- axle pivot

1шт.

14

1963312C1

KIT

SPACER SET - axle pivot pin

1шт.

15

1962993C1

BRACKET

- weight mounting

1шт.

16

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

17

1963264C1

CENTER AXLE

AXLE ASSEMBLY - left end section (Includes Ref. 19)

1шт.

18

1963265C1

CENTER AXLE

AXLE ASSEMBLY - right end section

1шт.

19

1963550C1

BUSHING

- front axle

2шт.

20

514-728

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

- hex, M10 x 65 mm

4шт.

(P/N 514-728) is BOLT, M10-1.25 x 65 CLASS 8.8 ZND - should be part nubmer 514-930 -- BOLT, M14-1.5 x 65 CLASS 8.8 ZND.

1шт.

21

1963425C1

STEERING KNUCKLE

SPINDLE - axle (Use with 24 and 28 inch rear tires)

2шт.

22

1963426C1

KNUCKLE

SPINDLE - axle (Use with 36 inch rear tires)

2шт.

23

1962097C1

HUB CAP

NUT - hex, special, M10 x 1.5 mm

2шт.

24

1271858C91

BALL BEARING

BEARING ASSEMBLY - ball, inner

2шт.

25

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball, outer

2шт.

26

1962085C1

OIL SEAL

SEAL - oil

2шт.

27

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

2шт.
