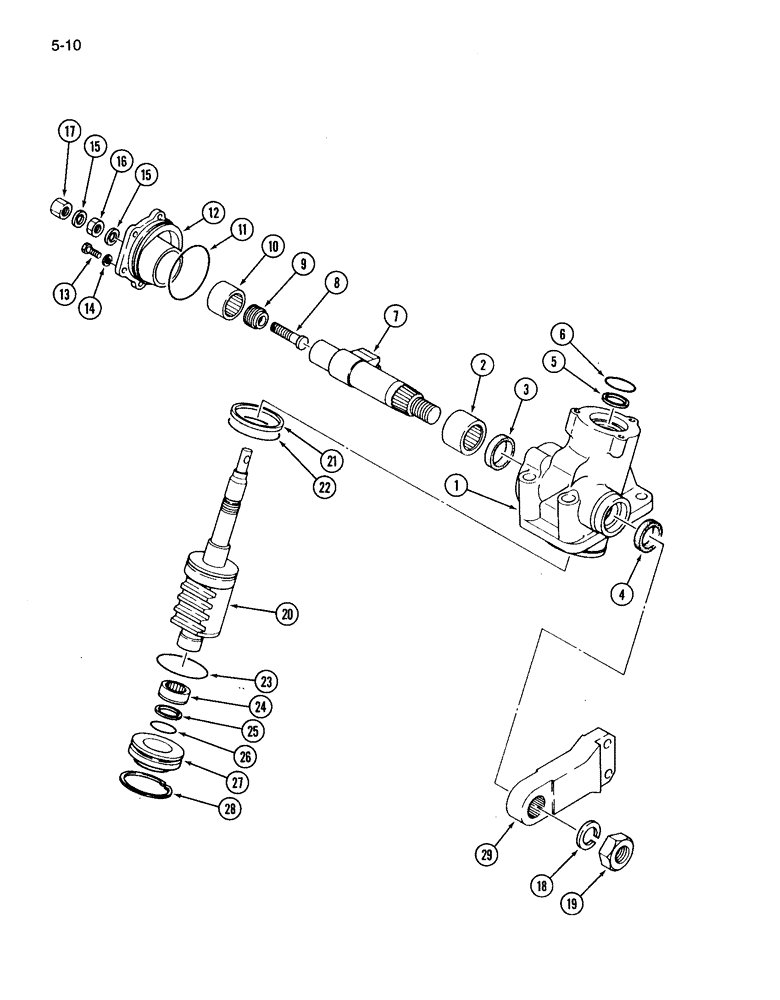

Запчасти Case IH 265 (5-10) - POWER STEERING GEAR BOX ASSEMBLY (05) - STEERING

1963440C1

DRIVE

GEAR BOX ASSEMBLY - power steering, Includes: Ref. 1 - 29

1шт.

1275430C91

HOUSING

ASSEMBLY - gear box, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - gear box

1шт.

2

1275364C91

NEEDLE BEARING

BEARING - needle

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - packing, Includes: Ref. 7 - 9

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

4

1275366C1

OIL SEAL

SEAL - oil

1шт.

5

NSS

NOT SOLD SEPARAT

RING - steering gear

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - steering gear, 30 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - sector

1шт.

7

1275402C1

SHAFT HOUSING

SHAFT - sector

1шт.

8

1275403C1

SCREW - adjuster

1шт.

9

1275404C1

ADJUSTER

- steering

1шт.

1275433C91

COVER ASSY

COVER ASSEMBLY - steering shaft, Includes: Ref. 10 - 12

1шт.

10

1275385C1

NEEDLE BEARING

- steering shaft

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 60 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - side

1шт.

13

30020R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, M10 x 25 mm, Class 10.9

4шт.

14

933965R1

LOCK WASHER,M10

Cover Assy - Gear case, Includes: Ref. 22 - 26 M10

4шт.

15

NSS

NOT SOLD SEPARAT

SEAL - packing

2шт.

Part of Seal Kit, P/N 1275450C1

1шт.

16

1275411C1

NUT

- hex, special, M10 X 1.5 mm

1шт.

17

1275410C1

NUT

- hex, special, M10 x 1.5 mm

1шт.

18

30510R1

LOCK WASHER,M22

WASHER - lock, 22 mm

1шт.

19

525-5111

NUT,M22 x 1.5, Cl 8

- hex, M22

1шт.

1963441C1

NUT

GEAR ASSEMBLY - steering, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

GEAR - steering (Order 1963441C1)

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - steering gear

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - steering gear, 50 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

1275432C91

COVER ASSY

COVER ASSEMBLY - front, Includes: Ref. 23 - 27

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 56 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

24

1275382C1

NEEDLE BEARING

- needle, cover

1шт.

25

NSS

NOT SOLD SEPARAT

RING - cover

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - cover, 300 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - front (Order 1275432C91)

1шт.

28

934444R1

SNAP RING,M63, Int

RING - retaining, internal, 67 mm OD

1шт.

29

1963442C1

ARM

- pittman

1шт.

1275450C1

STRIPPER PACKAGE

KIT - seal, Includes: ref. nos. 3, 5, 6, 11, 15, 21, 22, 23, 25 and 26 on Figures 5-8 and 5-10

1шт.
