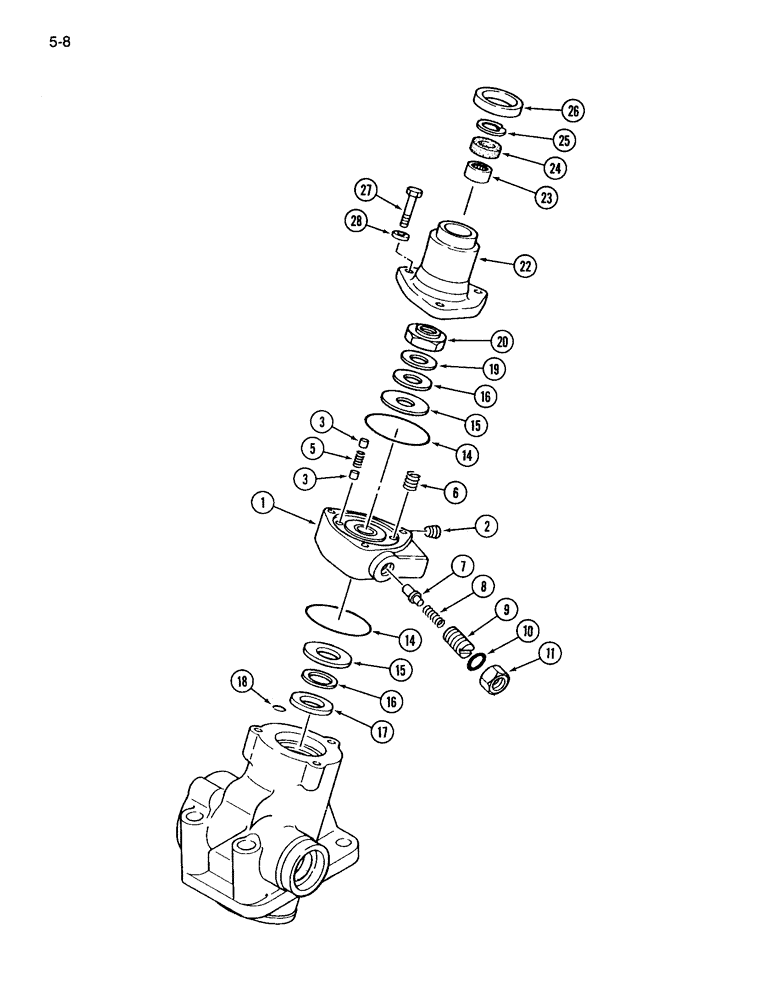

Запчасти Case IH 265 (5-08) - POWER STEERING VALVE (05) - STEERING

1275452C92

HOUSING

ASSEMBLY - valve, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

444689

PLUG,Hex Soc, 1/8"-27, Brass

- valve housing

2шт.

3

1275388C1

PISTON ASSY.

PISTON - valve housing

4шт.

5

1275390C1

VALVE SPRING

SPRING - piston

2шт.

6

1282964C1

VALVE SPRING

SPRING - valve housing

2шт.

7

1282965C1

LOCK VALVE

VALVE - poppet

1шт.

8

1275394C1

VALVE SPRING

SPRING - poppet valve

1шт.

9

1282966C1

SCREW,M22 x 1.5 x 19mm

- adjusting, poppet valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - poppet screw 16 mm ID

1шт.

Part of Seal Kit, P/N 1275450C1

1шт.

11

1282967C1

NUT,M22 x 1.5 x 30mm

- poppet screw

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 70 mm ID

2шт.

Part of Seal Kit, P/N 1275450C1

1шт.

15

1275414C1

WASHER

- flat, 52 mm OD

2шт.

16

1275417C1

NEEDLE BEARING

BEARING - needle, thrust

2шт.

17

1275414C1

WASHER

- flat, 43 mm OD

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 8 mm ID

2шт.

Part of Seal Kit, P/N 1275450C1

1шт.

19

1275416C1

WASHER

- flat, 36 mm OD

1шт.

20

1275413C1

NUT

- hex, special, M22 x 1.5 mm

1шт.

1963270C1

COVER ASSY

COVER ASSEMBLY - gear case

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - gear case

1шт.

23

1275398C1

NEEDLE BEARING

- cover

1шт.

24

1963271C1

SEAL

- oil

1шт.

25

933110R1

SNAP RING,M32, Int

RING - retaining, internal, 34 mm OD

1шт.

26

1963272C1

SEAL

- dust

1шт.

27

1275408C1

BOLT

- cover

3шт.

28

9363965R1

WASHER - lock, 10 mm

3шт.

1275450C1

STRIPPER PACKAGE

KIT - seal, Includes: ref. nos. 10, 14 and 18 on figures 5-8 and 5-10

1шт.
