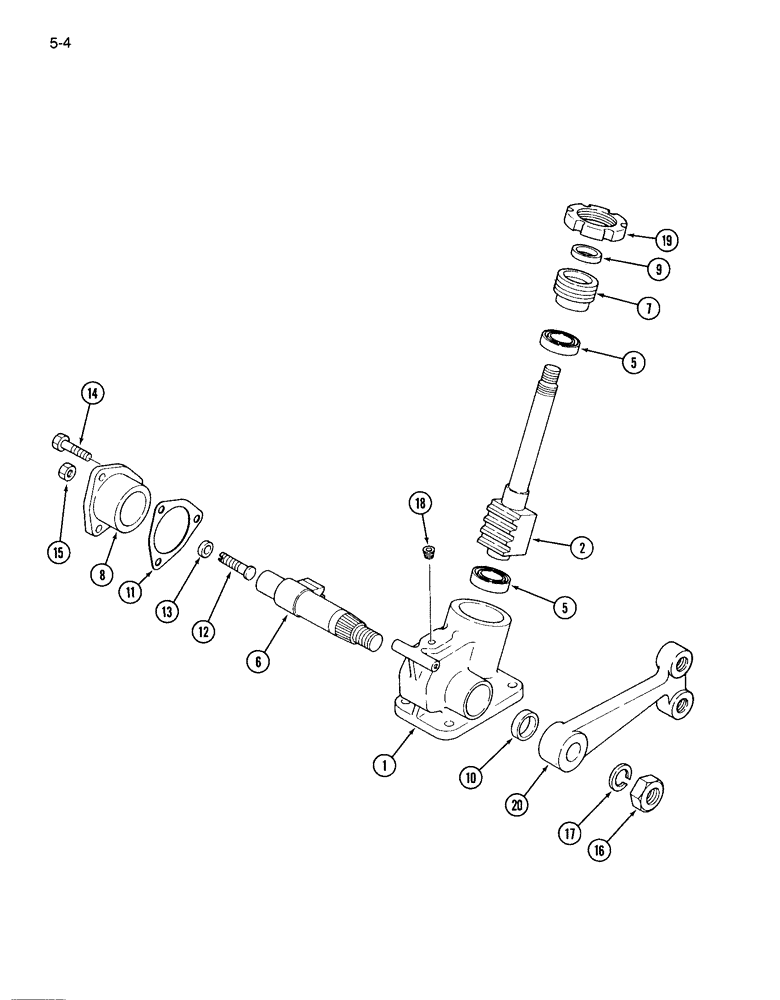

Запчасти Case IH 265 (5-04) - STEERING GEAR BOX ASSEMBLY MANUAL (05) - STEERING

1963435C1

DRIVE

GEAR BOX ASSEMBLY - manual steering, Includes: Ref. 1 - 20

1шт.

1

1963437C1

GEARBOX ASSY

GEAR BOX - steering

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - steering

1шт.

Part of Gear Kit, P/N 1963316C1

1шт.

5

1963261C1

BEARING

- steering gear shaft

2шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - sector

1шт.

Part of Gear Kit, P/N 1963316C1

1шт.

7

1963262C1

COVER

- rear

1шт.

8

1287597C1

COVER ASSY

COVER - side

1шт.

9

1963268C1

SEAL

- oil, steering gear shaft

1шт.

10

1273682C1

OIL SEAL

SEAL - oil, sector shaft

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - side cover (Order 19633185C1)

1шт.

Part of Overhaul Sealing Kit, P/N 1963315C1

1шт.

12

1273676C1

ADJUSTMENT SCREW,M10 x 1.25 x 37mm

SCREW - adjusting

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - adjusting screw

1шт.

Part of Overhaul Sealing Kit, P/N 1963315C1

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

3шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

15

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

1шт.

16

525-5116

NUT,M20 x 1.5, Cl 8

- hex, M20

1шт.

17

892-1120

LOCK WASHER,M20

WASHER - lock, 20 mm

1шт.

18

444693

PLUG,Hex Soc, 1/4"-18, Brass

- steering gear box

1шт.

19

1962258C1

NUT

- steering column

1шт.

20

1963438C1

ARM

- pittman

1шт.

1963315C1

PACKAGE

KIT - overhaul sealing, Includes: ref. nos. 11 and 13

1шт.

1963316C1

PACKAGE

KIT - gear, Includes: ref. nos. 2 and 6

1шт.
