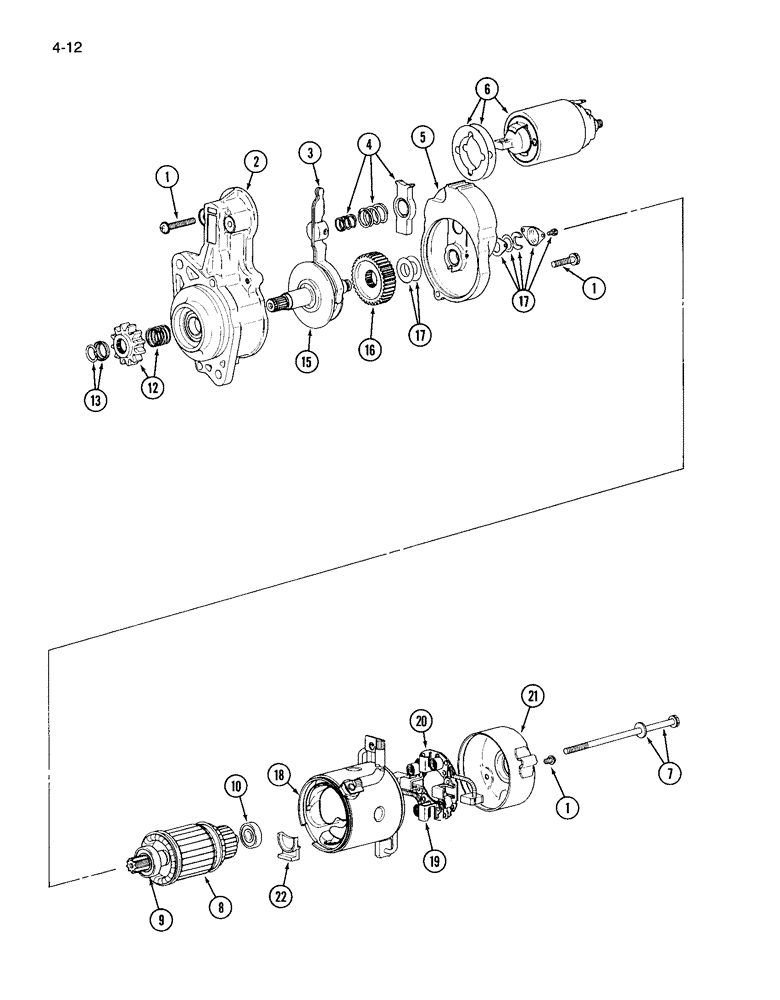

Запчасти Case IH 265 (4-12) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1962781C1

STARTING MOTOR

STARTER ASSEMBLY - engine, Includes: Ref. 1 - 22

1шт.

1

1962959C1

SCREW

HARDWARE SET - starter

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - front (Order 1962781C1)

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER ASSEMBLY - starter drive (Order 1962781C1)

1шт.

4

1962960C1

VALVE SPRING

SPRING SET - starter drive

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - center (Order 1962781C1)

1шт.

6

1962785C1

SWITCH

ASSEMBLY - magnetic

1шт.

7

1962961C1

BOLT (SPREADER)

BOLT - starter

1шт.

8

1962962C1

ARMATURE

ASSEMBLY - starter, Includes: Ref. 9 and 10

1шт.

9

1962963C1

BEARING

- armature

1шт.

10

1962964C1

BEARING

- armature

1шт.

1962965C1

SHAFT HOUSING

SHAFT ASSEMBLY - clutch, Includes: Ref. 12 - 17

1шт.

12

1962966C1

PINION

GEAR - drive

1шт.

13

1962967C1

STOP

ASSEMBLY - drive gear

1шт.

1962968C1

GEAR WHEEL

GEAR SET - clutch

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - clutch (Order 1962968C1)

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - drive (Order 1962968C1)

1шт.

17

1962969C1

COVER ASSY

HARDWARE SET - housing

1шт.

18

NSS

NOT SOLD SEPARAT

YOKE ASSEMBLY - field coil (Order 1962781C1)

1шт.

1962786C1

BRUSH

KIT - starter, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

HOLDER ASSEMBLY - brush (Order 1962786C1)

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - (Order 1962781C1)

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - rear (Order 1962781C1)

1шт.

22

1962970C1

MISC PACKAGING

GASKET - housing

1шт.
