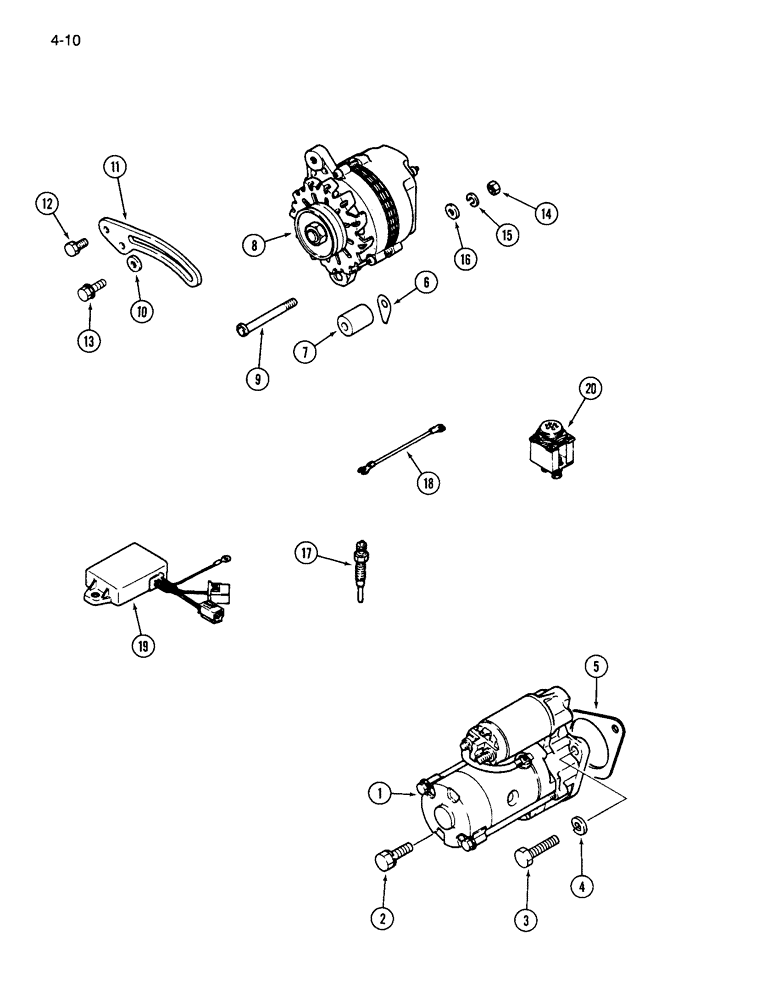

Запчасти Case IH 265 (4-10) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-12)

1шт.

2

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

1273113C1

BOLT,Hex, M10 x 1.25 x 40mm

BOLT - hex, M10 x 40 mm

1шт.

4

933965R1

LOCK WASHER,M10

1шт.

5

1962782C1

GASKET

- starter

1шт.

6

1273114C1

SHIM

- mounting adjust, alternator

1шт.

7

1962783C1

SPACER

- mounting, alternator

1шт.

8

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-14), mounting

1шт.

9

1273380C1

BOLT,M8 x 1.25 x 98mm

BOLT - hex, M8 x 98 mm, alternator mounting

1шт.

10

30326R1

WASHER,M8 x 17.5 x 2, HT

- flat, 9 x 17 x 2 mm, alternator mounting

1шт.

11

1962784C1

BRACKET

STRAP - alternator adjust, alternator mounting

1шт.

12

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm, alternator mounting

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm, Alternator mounting

1шт.

13

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm, alternator mounting

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm, Alternator mounting

1шт.

14

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, alternator mounting

1шт.

15

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm, Alternator mounting

1шт.

16

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm, Alternator mounting

1шт.

17

1273118C1

GLOW PLUG

PLUG - glow

3шт.

18

1273119C1

CABLE PULLING GRIP

CABLE - glow plug

2шт.

19

1273121C1

VALVE

REGULATOR - Control timer unit, glow plug

1шт.

20

1273120C1

LAMP

- indicator, glow plug

1шт.
