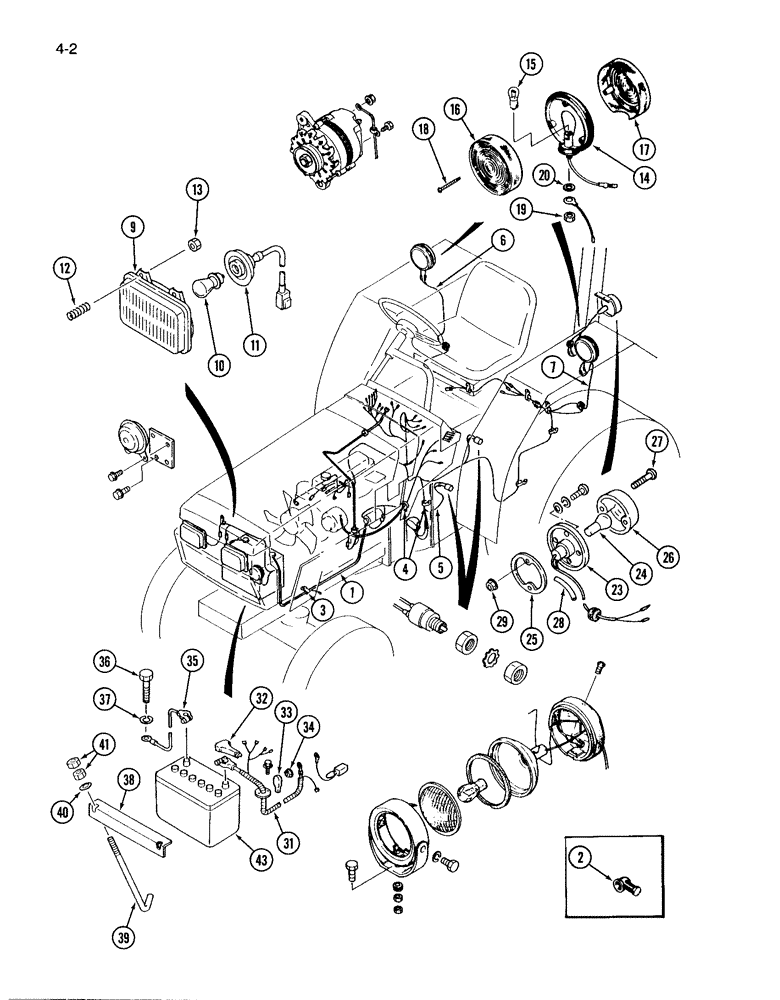

Запчасти Case IH 265 (4-02) - WIRING HARNESS AND BATTERY (04) - ELECTRICAL SYSTEMS

1

1963493C1

HARNESS

- wiring

1шт.

2

1271727C1

INSULATOR

- cap, terminal

1шт.

3

111619C1

STRAP

- tie

6шт.

4

1273580C1

CLAMP

- wire

2шт.

5

1963494C1

HARNESS

- wiring

1шт.

6

1962364C1

HARNESS

- wiring right rear

1шт.

7

1962365C1

HARNESS

- wiring, left rear

1шт.

1271730C91

LIGHT

LAMP ASSEMBLY - head, Includes: Ref. 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

UNIT - sealed beam

1шт.

10

1271731C1

BULB

- head lamp

1шт.

11

NSS

NOT SOLD SEPARAT

SOCKET - head lamp

1шт.

12

1271733C1

VALVE SPRING

SPRING - head lamp adjusting

6шт.

13

934871R1

NUT,M5, Cl 5

- flange, M5

6шт.

892-1105

LOCK WASHER,M5

WASHER - lock, 5 mm

6шт.

1271734C91

LIGHT ASSY.

LAMP ASSEMBLY - signal (Includes Ref.72), Includes: Ref. 14 - 18

2шт.

14

NSS

NOT SOLD SEPARAT

GASKET - lamp, rubber

1шт.

15

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

16

NSS

NOT SOLD SEPARAT

LENS - front

1шт.

17

NSS

NOT SOLD SEPARAT

LENS - rear

1шт.

18

NSS

NOT SOLD SEPARAT

SCREW - M4 x 40 mm

3шт.

19

825-1110

NUT,M10, Cl 8

hex, Incl. Ref 20 M10, Cl 8

1шт.

20

934494R1

WASHER,Ext Tooth, M10

- lock, external tooth, 10 mm

1шт.

NSS

NOT SOLD SEPARAT

WIRE - signal lamp, 8-5/64 inch (205 mm) long (Order B17725 and cut to length, 1-54773R1 terminal, 1-244058R1 terminal and 2-165565R1, or 2-238100R1 or 2-915073R1 terminals)

1шт.

1271739C91

LIGHT

LAMP ASSEMBLY - tail, Includes: Ref. 23 - 27

1шт.

23

NSS

NOT SOLD SEPARAT

SOCKET - tail lamp

1шт.

24

71421

BULB,R5W, 12V, 5W

- tail lamp (No.67)

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - tail lamp, rubber

1шт.

26

NSS

NOT SOLD SEPARAT

LENS - tail lamp

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - M3 x 30 mm

2шт.

28

1963005C1

TUBE

- tail lamp

1шт.

29

934871R1

NUT,M5, Cl 5

- flange, M5

2шт.

892-1105

LOCK WASHER,M5

SCREW - lamp assembly, Includes: Ref. 87 - 89

2шт.

1963495C1

CABLE ASSY.

CABLE ASSEMBLY - battery, positive

1шт.

31

NSS

NOT SOLD SEPARAT

CABLE - battery, positive

1шт.

32

NSS

NOT SOLD SEPARAT

CAP - battery terminal

1шт.

33

NSS

NOT SOLD SEPARAT

CAP - battery cable

1шт.

34

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

35

1271748C1

CABLE

ASSEMBLY - battery, negative

1шт.

36

1962561C1

BOLT (SPREADER),M8 - 1.25 x 25mm

BOLT - hex, special

1шт.

37

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

38

1271760C1

ANGLE

BRACKET - battery hold down

1шт.

39

1271761C1

BOLT,M6 x 1 x 275mm

ROD - battery hold down

2шт.

40

446179

WASHER,#12

- flat, 6 x 12 x 2 mm

2шт.

41

825-1106

NUT,Hex, M6, Cl 8

- hex, M6

4шт.

43

B2472

DRY BATTERY

BATTERY - 12 volt (Replaces T40362)

1шт.
