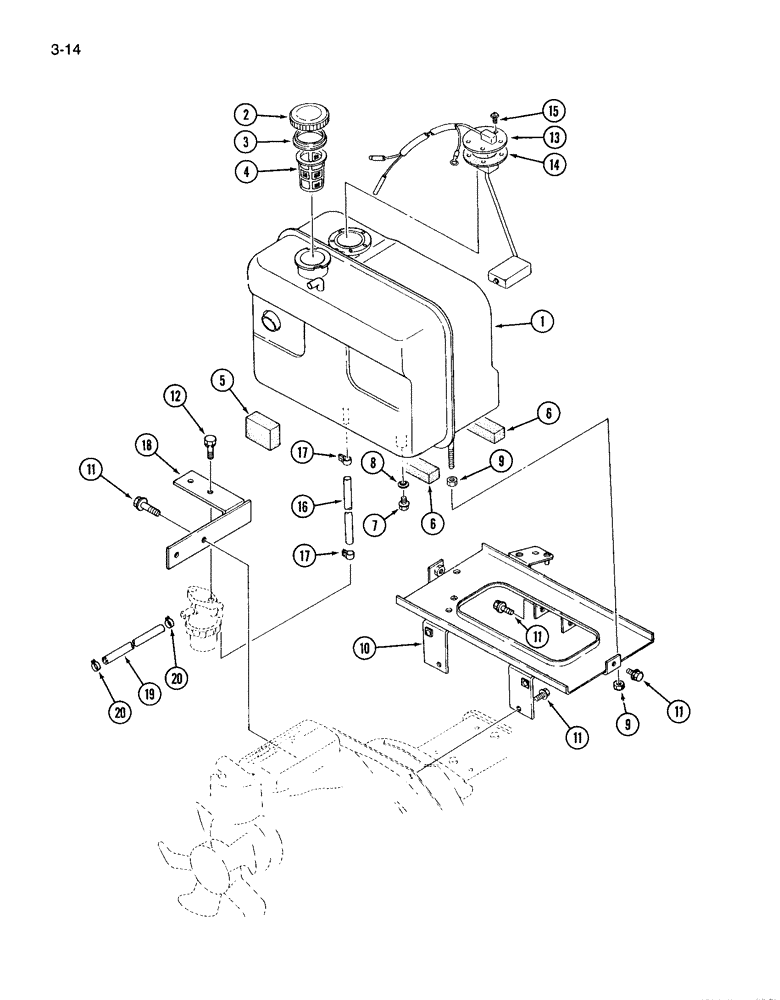

Запчасти Case IH 265 (3-14) - FUEL TANK AND SUPPORTS (03) - FUEL SYSTEM

1

1273623C1

FUEL TANK

TANK - fuel

1шт.

2

99395C1

CAP ASSY.

CAP - fuel tank

1шт.

3

1269627C1

SEAL

- fuel tank cap

1шт.

4

1269628C1

STRAINER ELEMENT

STRAINER - fuel

1шт.

5

1962573C1

CUSHION ASSY.

SEAL - fuel tank

1шт.

6

1269636C1

STRIP

- rubber, tank cushion

3шт.

7

1269630C1

BOLT,M8 x 1.25 x 12mm

PLUG - drain, fuel tank

1шт.

8

1275284C1

SEALING WASHER

SEAL - drain plug

1шт.

9

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

4шт.

10

1963362C1

BRACKET

- fuel tank support

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

8шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

8шт.

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

8шт.

12

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

933965R1

LOCK WASHER,M10

2шт.

13

1269633C1

GAUGE ASSY.

GAUGE ASSEMBLY - fuel level sender, Includes: Ref. 14

1шт.

14

1269634C1

GASKET

- fuel level sender

1шт.

15

30512R1

SCREW,Cross Pan Hd, M4 x 12

- pan head cross recess, 4 x 12 mm

5шт.

892-1104

LOCK WASHER,M4

WASHER - lock, 4 mm

5шт.

895-1104

WASHER - flat, 4 x 9 x 1 mm

5шт.

16

NSS

NOT SOLD SEPARAT

HOSE - fuel, 1/4 ID x 13-25/64 inch (6 x 304 mm) (Order 427683C2 and, Serial Range: cut-length)

1шт.

17

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

2шт.

18

1963363C1

BRACKET

- mounting, fuel filter

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - fuel return, 5/16 ID x 8-7/8 inch (8 x 225 mm) (Order 1954143C1 and, Serial Range: cut-length)

1шт.

20

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

2шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - rubber, 1/4 ID x 50 feet

1шт.

1954143C1

FUEL HOSE,0.31" ID x 25.00' Bulk

0.31" ID x 25.00' Bulk

1шт.
