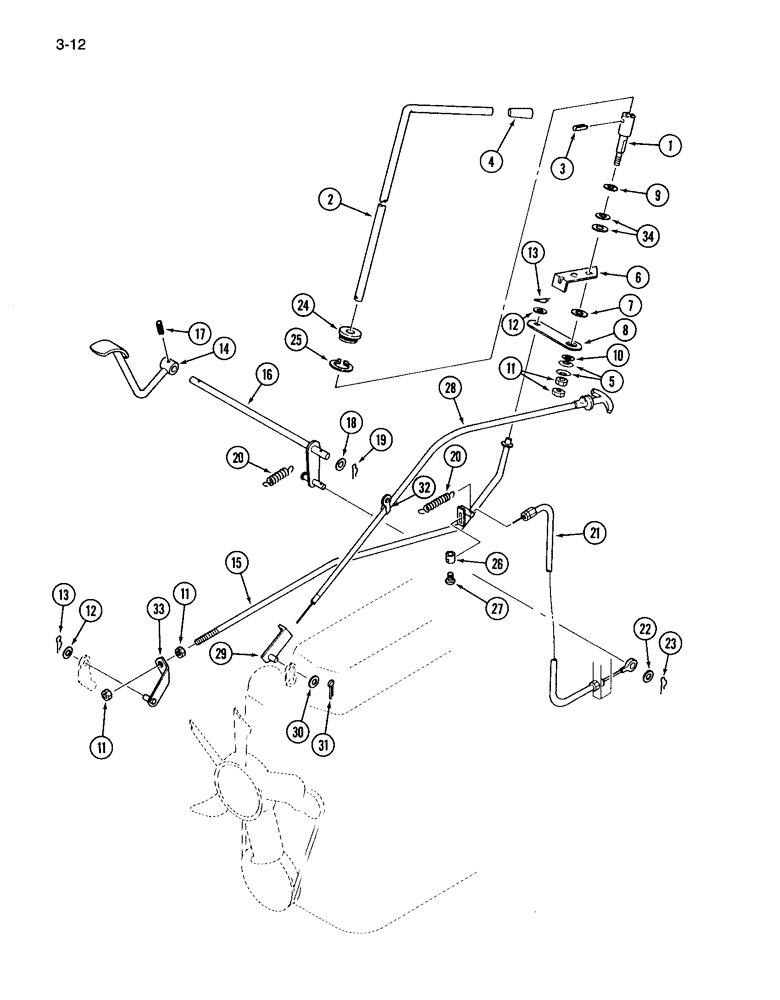

Запчасти Case IH 265 (3-12) - THROTTLE CONTROLS (03) - FUEL SYSTEM

1

1963278C1

SHAFT

- throttle

1шт.

2

1963367C1

LEVER

- throttle

1шт.

3

31123R1

LOCK PIN,M5 x 22, Slotted

PIN - spring

1шт.

4

1269854C1

GRIP

KNOB - throttle lever

1шт.

5

1269855C1

WASHER

- spring

2шт.

6

1962193C1

ARM

- control

1шт.

7

1962191C1

SPACER

- 4 mm thick

1шт.

8

1962192C1

LEVER

- control

1шт.

9

1282541C1

WASHER

- throttle shaft

1шт.

10

30183R1

WASHER,M8 x 21.5 x 2.5, HT

- flat, 9 x 21 x 2 mm

1шт.

11

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

4шт.

12

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

2шт.

13

1269734C1

AXLE PIN

PIN - hair

2шт.

14

1963364C1

PEDAL

- foot throttle

1шт.

15

1963368C1

ROD

- control

1шт.

16

1963365C1

ROD

- pedal control

1шт.

17

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

18

25709R1

WASHER

- flat, 11 x 21 x 2 mm

1шт.

19

1269735C1

AXLE PIN

PIN - hair

1шт.

20

1269552C1

VALVE SPRING

SPRING - foot throttle

2шт.

21

1981399C1

ELECTRICAL WIRE

CABLE - throttle (Replaces 1963366C1)

1шт.

22

446179

WASHER,#12

- flat, 6 x 12 x 2 mm

1шт.

23

1269734C1

AXLE PIN

PIN - hair

1шт.

24

1963277C1

BUSHING

- throttle lever

1шт.

25

1062179C1

SNAP RING,M25, Ext

RING - retaining, external, 23 mm ID

1шт.

26

1963248C1

GASKET

NUT - throttle cable

1шт.

27

1963249C1

SCREW

- throttle cable

1шт.

28

1962575C1

ELECTRICAL WIRE

CABLE ASSEMBLY - fuel shutoff

1шт.

29

1962576C1

JOINT TURNING

CONNECTOR - cable end

1шт.

30

446179

WASHER,#12

- flat, 6 x 12 x 2 mm

1шт.

31

932952R1

COTTER PIN,M2 x 20

PIN - cotter, 2 x 20 mm

1шт.

32

1271755C1

CLAMP

- cable

1шт.

33

1963279C1

JOINT

CONNECTOR - throttle control rod

1шт.

34

933587R1

WASHER,M12 x 24 x 2.5

- flat, 13 x 24 x 3 mm

2шт.
