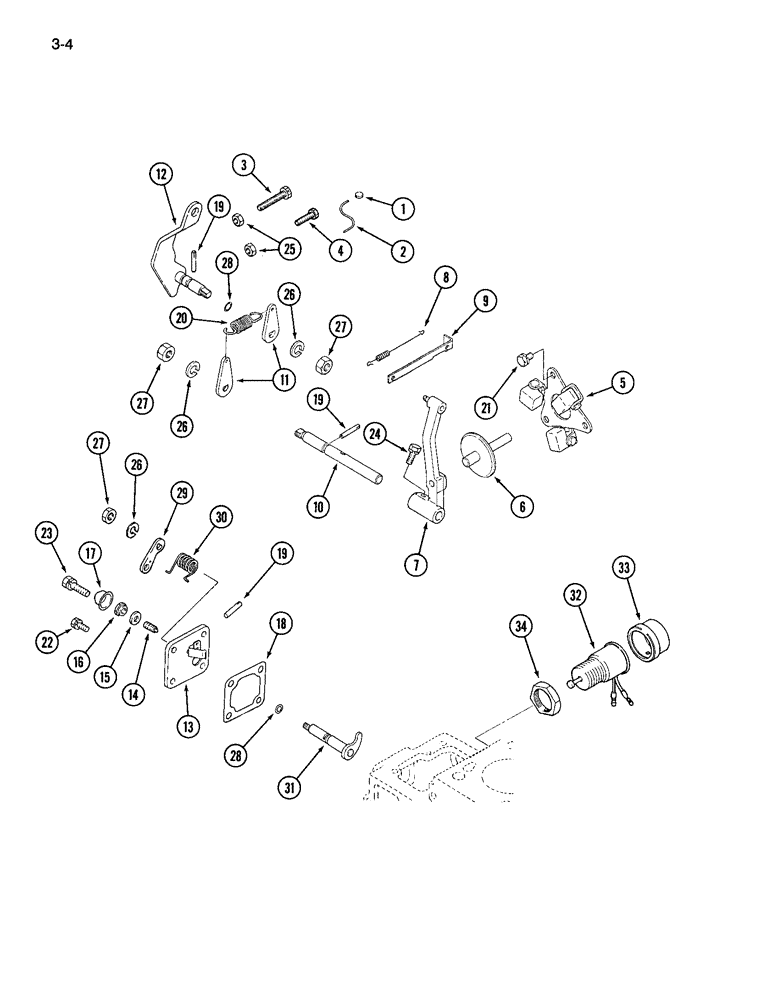

Запчасти Case IH 265 (3-04) - GOVERNOR CONTROLS (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
SEAL - lock wire
1шт.
2
NSS
NOT SOLD SEPARAT
WIRE - lock
1шт.
3
1271819C1
BOLT,Set, Drilled Hex Hd, M6 x 1 x 35mm
BOLT - high speed set
1шт.
4
1271830C1
BOLT,Set, Drilled Hex Hd, M6 x 1 x 20mm
BOLT - drilled head, M6 x 20 mm
1шт.
5
1273034C1
WEIGHT
ASSEMBLY - governor
1шт.
6
1273035C1
SHAFT HOUSING
SHAFT ASSEMBLY - sliding
1шт.
7
1273036C1
LEVER
ASSEMBLY - governor
1шт.
8
1273037C1
VALVE SPRING
SPRING - tie rod
1шт.
9
1273038C1
SUPPORT ASSY.
ROD - tie
1шт.
10
1273039C1
SHAFT HOUSING
SHAFT - governor
1шт.
11
1273040C1
ARM
- spring
2шт.
12
1273042C1
LEVER
ASSEMBLY - speed control
1шт.
13
1273043C92
COVER ASSY
COVER ASSEMBLY - tie rod, Includes: Ref. 14 - 17
1шт.
14
1273045C1
ADJUSTMENT SCREW,M6 x 17mm
SCREW - adjusting
1шт.
15
1273044C1
SEALING WASHER
SEAL - washer
1шт.
16
1273046C1
NUT
- special, M6 x 1.0
1шт.
17
1273047C1
CYLINDER END CAP
CAP - sealing
1шт.
18
1273048C1
GASKET
- cover
1шт.
19
1271831C1
AXLE PIN
PIN - grooved
3шт.
20
1273049C1
VALVE SPRING
SPRING - governor
1шт.
21
614-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
3шт.
933833R1
LOCK WASHER,M6
3шт.
22
614-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
- hex, M6 x 18 mm
3шт.
933833R1
LOCK WASHER,M6
3шт.
23
826-6030
BOLT,Hex, M6 x 1 x 30mm, Cl 10.9
1шт.
933833R1
LOCK WASHER,M6
1шт.
24
614-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
- hex, M6 x 14 mm
1шт.
933833R1
LOCK WASHER,M6
1шт.
25
30208R1
NUT,M6, Cl 10
- hex, M6, Grade 10
2шт.
26
934309R1
LOCK WASHER,M8
WASHER - lock, 8 mm
3шт.
27
30382R1
NUT,M8 x 1.25, Cl 10
Hex, Prevailing torque M8 x 1.25, Cl 10
3шт.
28
1271836C1
O-RING,6.8mm ID x 1.9mm Width
O-RING - 7 mm ID
3шт.
29
1273052C2
ARM
- stop
1шт.
30
1273051C1
VALVE SPRING
SPRING - return
1шт.
31
1273050C1
LEVER
ASSEMBLY - stop
1шт.
32
1273053C1
RELAY
- solenoid, Includes: Ref. 33
1шт.
33
NSS
NOT SOLD SEPARAT
CAP - solenoid
1шт.
34
1273055C1
NUT
- hex, M30
1шт.
Выбрано товаров: 38
