(2-28) - ENGINE GASKET KITS

Запчасти Case IH 265 (2-28) - ENGINE GASKET KITS (02) - ENGINE

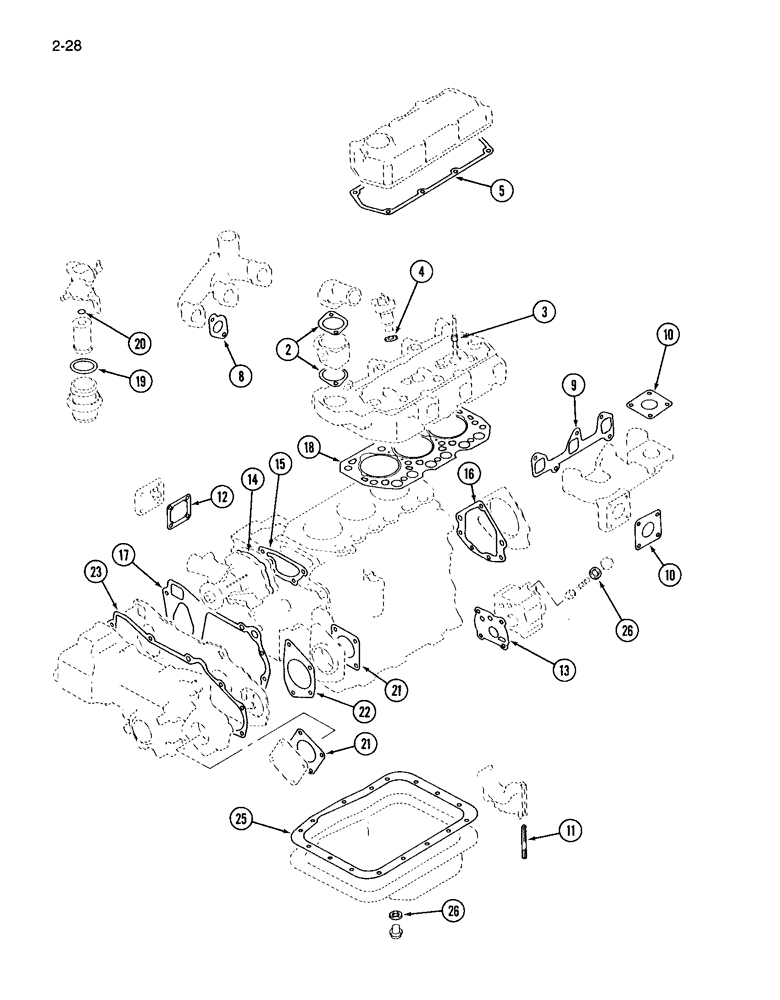

Схема запчастей Case IH 265 - (2-28) - ENGINE GASKET KITS (02) - ENGINE
22
26
23
20
10
3
10
21
19
9
14
17
2
15
8
13
12
18
11
25
5
26
16
4
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1962798C1

GASKET KIT

GASKET KIT - engine overhaul, Includes: Ref. 2 - 10

1шт.

1962920C1

GASKET KIT

GASKET KIT - valve grind, Includes: Ref. 2 - 10

1шт.

2

1273088C1

GASKET

- thermostat outlet

2шт.

3

1962787C1

SEAL

SEAL - valve

6шт.

4

1273000C1

GASKET

- nozzle holder

3шт.

5

1962790C1

GASKET

- cover, cylinder head

1шт.

8

1962793C1

MANIFOLD GASKET

- intake manifold

3шт.

9

1962794C1

MANIFOLD GASKET

- exhaust manifold

1шт.

10

1273104C1

GASKET

- exhaust pipe

2шт.

11

1271776C1

SEAL

SEAL - side, main bearing

4шт.

12

1273048C1

GASKET

- cover, governor

1шт.

13

1273064C1

GASKET

- oil pump

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET - water pump

1шт.

15

1273086C1

GASKET

- water pump

1шт.

16

1962795C1

GASKET

- oil seal

1шт.

17

1962807C1

GASKET

- front plate

1шт.

18

1962788C1

CYLINDER HEAD GASKET

- cylinder head

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - filter cup

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - element

1шт.

21

1271913C1

GASKET

- oil pump cover

2шт.

22

1962797C1

GASKET

- pump gear housing

1шт.

23

1962791C1

GASKET

- gear case

1шт.

25

1962792C1

GASKET

- oil pan

1шт.

26

1271905C1

GASKET

- drain plug

2шт.
