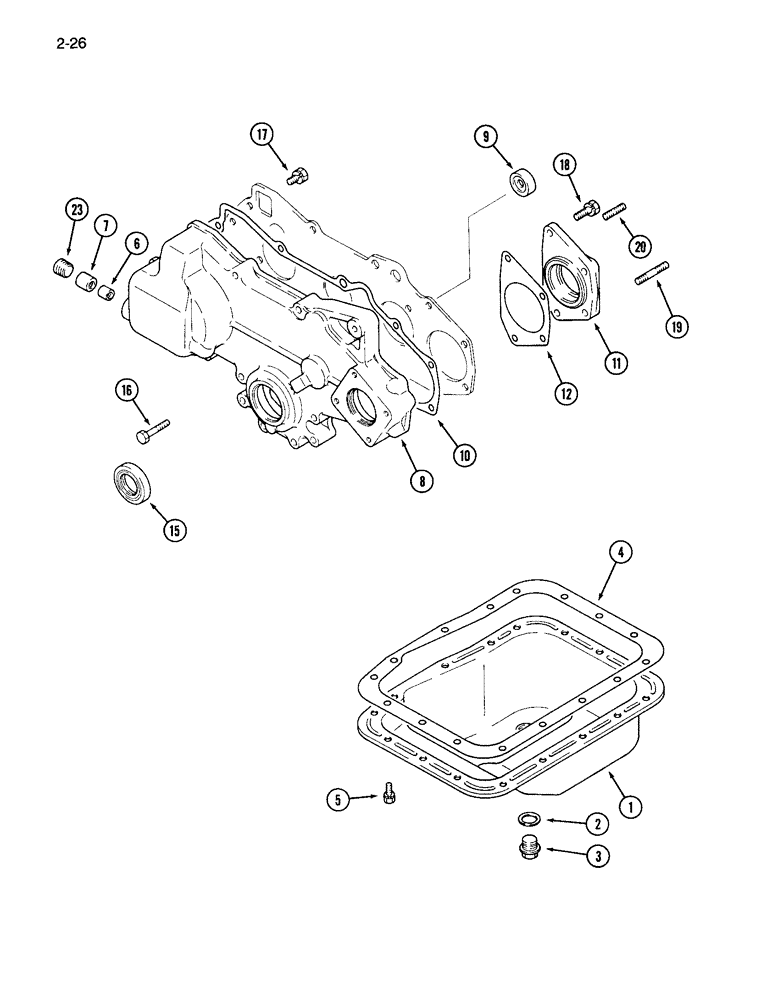

Запчасти Case IH 265 (2-26) - OIL PAN AND FRONT GEAR COVER (02) - ENGINE

1

1962823C1

PAN ASSY.

PAN ASSEMBLY - oil, engine, Includes: Ref. 2 and 3

1шт.

2

1271905C1

GASKET

- drain plug

1шт.

3

1271906C1

PLUG

- oil drain

1шт.

4

1962792C1

GASKET

- oil pan

1шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

16шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

16шт.

6

1273346C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.

7

1273347C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.

8

1962825C1

CASE

COVER ASSEMBLY - gear front

1шт.

9

1273077C1

PLUG

- thrust

1шт.

10

1962791C1

GASKET

- gear cover

1шт.

11

1962827C1

HOUSING

- pump gear bearing

1шт.

12

1962797C1

GASKET

- housing

1шт.

1962829C1

COVER

- oil pump shaft

1шт.

Use with constant mesh transmission, manual steering only.

1шт.

1271913C1

GASKET

- pump

2шт.

Use with constant mesh transmission, manual steering only.

1шт.

15

1273348C1

OIL SEAL

SEAL - oil

1шт.

16

30007R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, M8 x 45 mm

10шт.

17

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

2шт.

19

1273128C1

STUD

- threaded, M8 x 45 mm

2шт.

20

1273130C1

STUD

- threaded, M8 x 22 mm

6шт.

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Class 10

4шт.

Use with constant mesh transmission, manual steering only.

1шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

Use with constant mesh transmission, manual steering only.

1шт.

23

444705

PLUG,Hex Soc, 1/2"-14, Brass

- hex socket head, 1/2-14 automotive PT

1шт.
