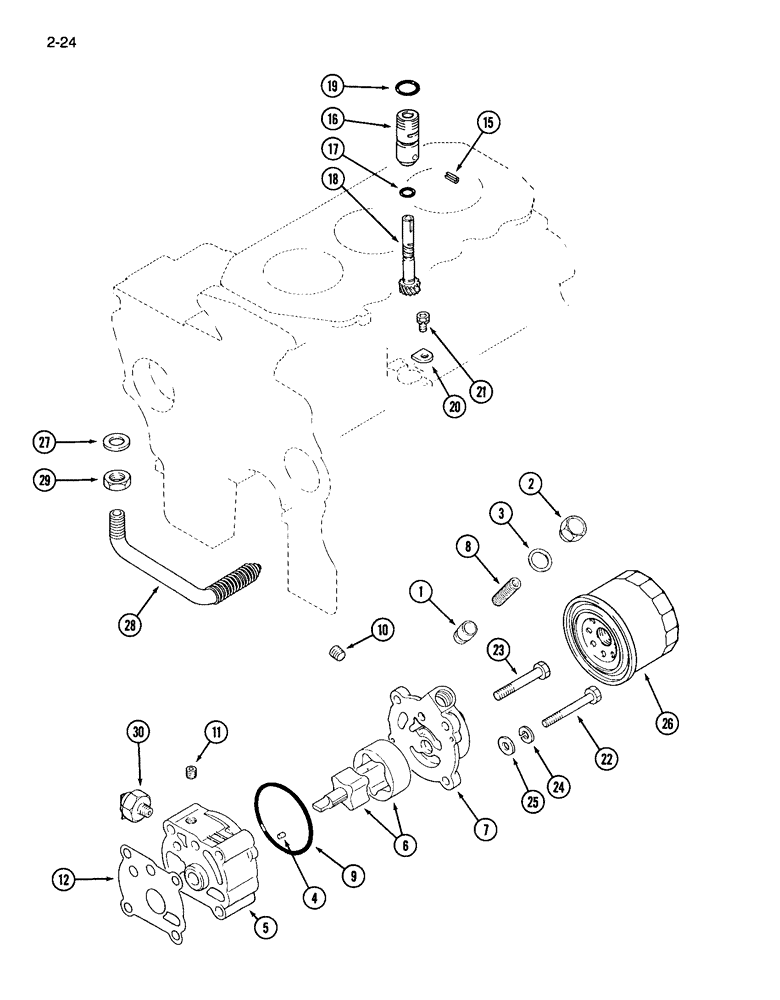

Запчасти Case IH 265 (2-24) - OIL PUMP AND FILTER (02) - ENGINE

1273056C91

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

Order 1273056C91 pump assembly or 1273080C1 relief valve kit.

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

Order 1273056C91 pump assembly or 1273080C1 relief valve kit.

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - relief valve

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

ROD ASSEMBLY - connecting, Includes: Ref. 5 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - dowel (Order 1273056C91)

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - oil pump (Order 1273056C91

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - oil pump

1шт.

Order 1273056C91 pump assembly or 1273081C91 rotor kit.

1шт.

Part of Oil Pump Rotor KIt, P/N 1273081C91

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - oil pump (Order 1273056C91)

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

Order 1273056C91 pump assembly or 1273080C1 relief valve kit.

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - oil pump

1шт.

Order 1273056C91 pump assembly or 1273081C91 rotor kit.

1шт.

Part of Oil Pump Rotor KIt, P/N 1273081C91

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - pump cover, 1/4 PT (Order 1273056C91)

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - pump body, 1/8 PT (Order 1273056C91)

1шт.

12

1273064C1

GASKET

- oil pump

1шт.

Part of Oil Pump Rotor KIt, P/N 1273081C91

1шт.

1273065C91

DRIVE ASSY.

DRIVE ASSEMBLY - speedometer, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

PIN - spring (Order 1273065C91)

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - gear (Order 1273065C91)

1шт.

17

1271834C1

O-RING,10.3mm ID x 2.4mm Width

O-RING - 10 mm ID

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR - driven, speedometer (Order 1273065C91), Includes: Ref. 29

1шт.

19

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

20

1273068C1

BAR

- speedometer drive, locking

1шт.

21

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex, M6 x 14 mm

1шт.

933833R1

LOCK WASHER,M6

1шт.

22

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

- hex, M8 x 65 mm

3шт.

23

30010R1

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

- hex, M8 x 60 mm

1шт.

24

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

25

934675R1

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 2 mm

3шт.

26

1962769C1

FILTER, ELEMENT

ELEMENT - filter, oil, engine

1шт.

27

1273070C1

SEALING WASHER

SEAL - washer

1шт.

28

1962909C1

TUBE

- oil screen

1шт.

29

1269797C1

TUBE NUT

NUT - jam, M16

1шт.

30

1273073C1

SWITCH

- oil pressure

1шт.

1273080C1

KIT

RELIEF VALVE KIT - oil pump, Includes: ref. nos. 1, 2, 3, 8

1шт.

1273081C91

KIT

ROTOR KIT - oil pump, Includes: ref. nos. 6, 9, 12

1шт.
