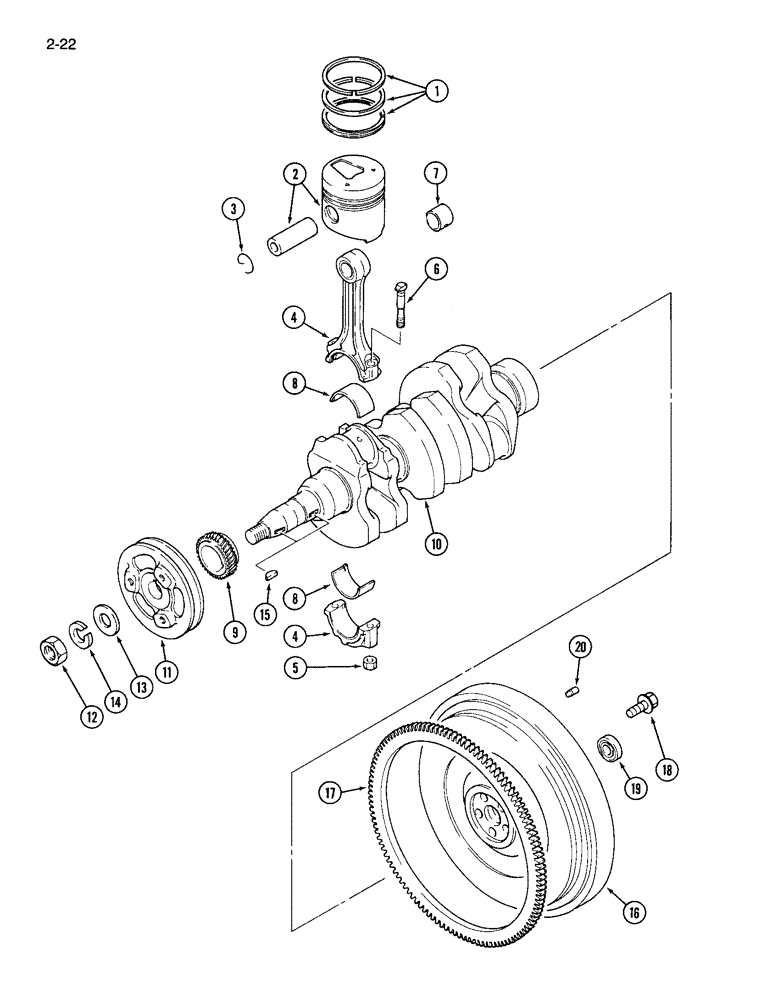

Запчасти Case IH 265 (2-22) - PISTON, CONNECTING ROD, CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

1962843C1

RING

KIT - piston, standard

3шт.

1

1962845C1

PISTON RING SET

RING KIT - piston, 0.25 mm oversize

3шт.

1

1962847C1

PISTON RING SET

RING KIT - piston, 0.50 mm oversize

3шт.

1

1962849C1

PISTON RING SET

RING KIT - piston, 0.75 mm oversize

3шт.

2

1962851C1

PISTON ASSY.

PISTON AND PIN KIT - Standard

3шт.

2

1962853C1

PISTON ASSY.

PISTON AND PIN KIT - 0.25 mm oversize

3шт.

2

1962855C1

PISTON ASSY.

PISTON AND PIN KIT - 0.50 mm oversize

3шт.

2

1962857C1

PISTON ASSY.

PISTON AND PIN KIT - 0.75 mm oversize

3шт.

3

1273079C1

RING

CLIP - piston pin retainer

6шт.

4

1962859C1

ROD

ASSEMBLY - connecting

3шт.

5

1962865C1

NUT

- connecting rod

6шт.

6

1962866C1

BOLT (SPREADER),M9-1 x 57.5mm

BOLT - connecting rod

6шт.

7

1962867C2

BEARING LINER

BEARING - connecting rod

3шт.

8

1962868C1

BEARING SET

BEARING KIT - connecting rod, standard

3шт.

8

1962870C1

KIT

BEARING KIT - connecting rod, 0.25 mm undersize

3шт.

8

1962872C1

KIT

BEARING KIT - connecting rod, 0.50 mm undersize

3шт.

8

1962874C1

KIT

BEARING KIT - connecting rod, 0.75 mm undersize

3шт.

9

1271963C1

GEAR WHEEL

GEAR - crankshaft, front

1шт.

10

1962876C1

CRANKSHAFT

- engine

1шт.

11

1962877C1

PULLEY

- crankshaft

1шт.

12

1282748C1

NUT

- crankshaft

1шт.

13

1962878C1

WASHER

- flat

1шт.

14

892-1120

LOCK WASHER,M20

WASHER - lock, 20 mm

1шт.

15

1271974C1

KEY

- Woodruff, 5 x 19 mm

2шт.

16

1271968C91

FLYWHEEL

ASSEMBLY - crankshaft

1шт.

17

1271969C1

GEAR WHEEL

GEAR - ring

1шт.

18

1271833C2

FLANGE BOLT,Hex Wshr Hd, M12 x 1.25 x 29mm

BOLT - flywheel

5шт.

19

1273355C91

BEARING, BALL,15 mm ID x 32 mm OD x 9 mm

BEARING - flywheel

1шт.

20

1271835C1

AXLE PIN

PIN - dowel

3шт.
